These days kitchens are viewed by most of us as the most important room in the house — the heart of the home. However, it has not always been this way, which means that if you are renovating an unloved period property, chances are the kitchen will need some work.

Designing a New Kitchen

The most common route when designing a new kitchen is to obtain a kitchen design from the supplier you have chosen. They will come up with several designs for you to look at, based on the dimensions of your space and your individual needs.

Alternatively, you might ask your architects or designer to come up with a plan for you. Otherwise, it is a case of coming up with your own design and taking this to a supplier who will then provide you with a quote.

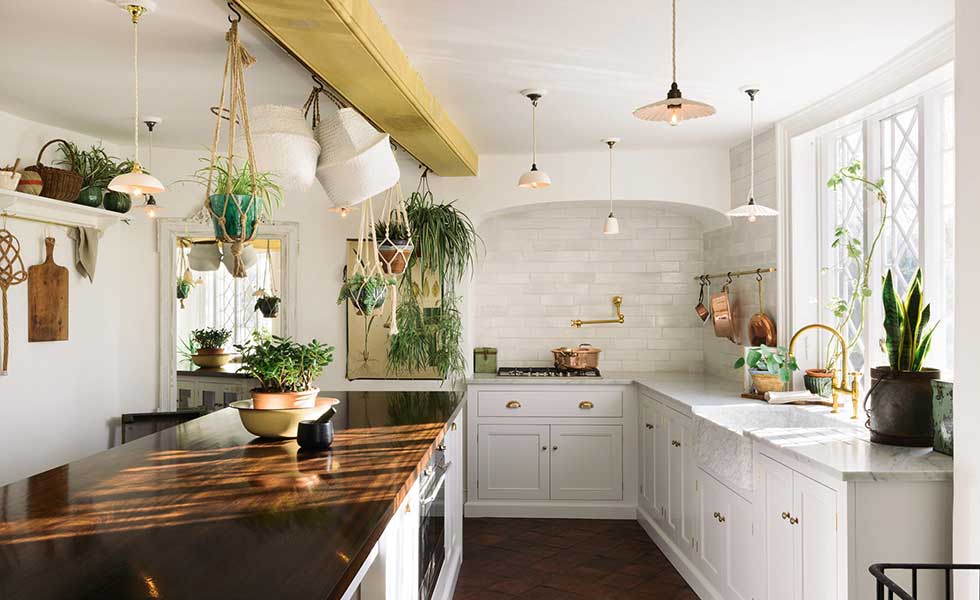

Classic white farmhouse kitchen

Use original features, such as alcoves, within your new kitchen design. Classic Millhouse kitchen from deVOL

In terms of coming up with a brief, start with the basics:

  • Every kitchen needs a cooker, fridge freezer and sink. Start with these items, and add other features around them.
  • Look at what you already have — are there any interesting architectural details that could be incorporated into your new design, such as old beams or alcoves?
  • Adequate kitchen storage space is a must. Base your storage needs on the size of your household, how much kitchen equipment you own, and how and where to store your food

You will also need to take into account what activities will take place here other than cooking:

  • Will you be using your kitchen only as a room in which to store, prepare and cook food, or would you like it to double up as a room in which you can sit and eat too?
  • Will this also be an entertaining space?
  • Would you be satisfied with a breakfast bar or island unit with stools, or would a full-size table for family gatherings be better?

Assess the dimensions of the room and then make a wish-list — in order of priority.

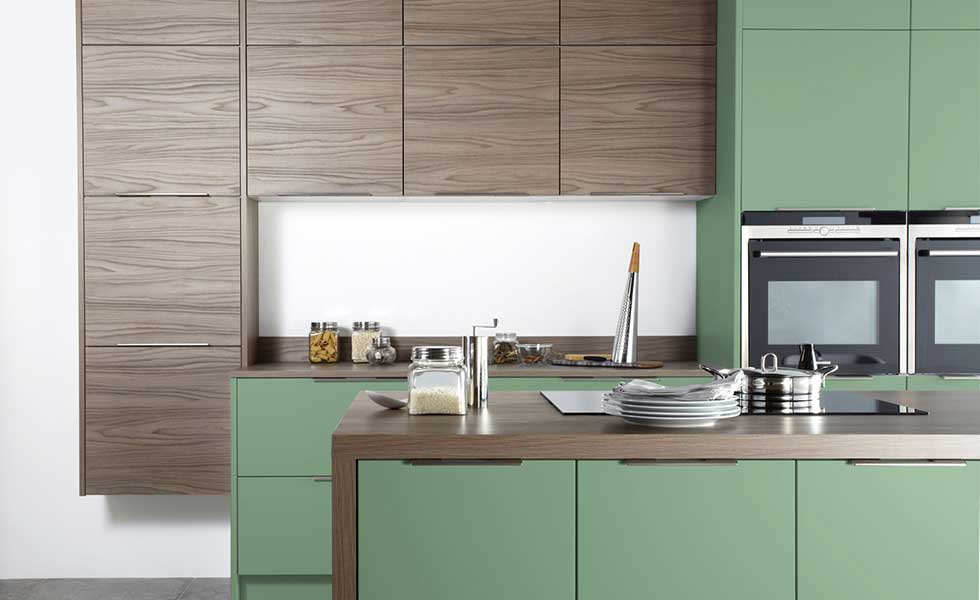

contemporary green kitchen

Renovators of old houses need not feel restricted to traditional kitchens — contemporary styles work well too. Burbidge

Removing an Old Kitchen

Don’t feel that everything has to go — there may well be some items worth salvaging.

If you are remodelling your kitchen on a budget then it will be worth taking a look at what kind of condition your unit carcasses are in — whilst the unit doors may be in a bad state of repair or not to your taste, you might find that the carcasses can be reused.

Remember that the more careful you are with the removal of the old kitchen, the easier it will be to install the new one.

Schedule of Works

  1. Remove wall units
  2. Remove worktop and base units
  3. Remove flooring
  4. First fix electrics
  5. Reroute plumbing
  6. Lay new flooring
  7. Install wall units
  8. Install base units
  9. Second fix electrics
  10. Fit worktop
  11. Fit sink and complete plumbing to taps, drains and appliances
  12. Install appliances
  13. Fit extractor fan
  14. Tile and decorate

(MORE: Want to fit the kitchen yourself?)

Wall Units

Start by removing the wall units. If you take out the base units and worktop first, you will have nothing to rest heavy wall units on while you work.

When removing wall units, first remove all internal shelves. Each unit will probably be attached to the one next to it either by wood screws, interconnectors or bolts. Older units tend to be attached to the wall by long screws, whereas more modern ones are usually connected by an adjustable hook and wall bracket system.

Sink

Before removing the sink, make sure you can turn the water off. The main stopcock, usually located under the sink, controls the cold water, whilst the hot water should be switched off using the hot water valve, often found in the airing cupboard with a big red handle.

Turn on the taps and wait for the water to stop — the hot tap can take up to 10 minutes to drain. It is a good idea to keep a couple of push-fit stop-ends close by in order to cap the pipes and stop the water flowing out. You will then need to undo the waste pipe. This is easily done by turning the upper plastic collar anti-clockwise and placing a bucket underneath to catch any dirty water.

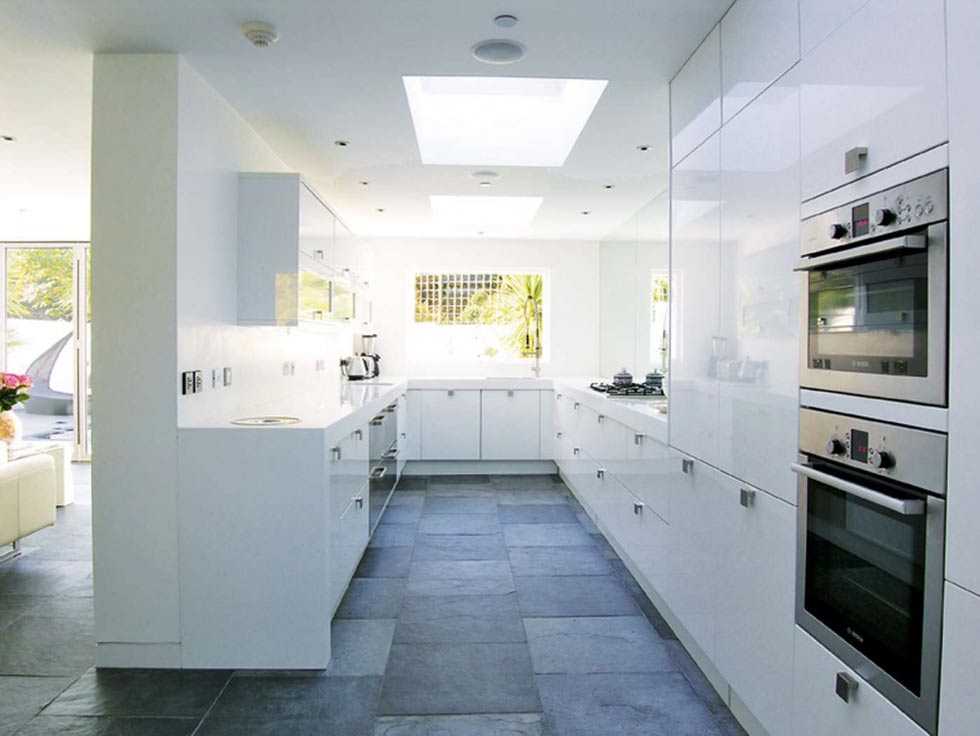

Galley kitchen

The owners of a 1960s semi have remodelled their home and are now owners of a contemporary-style galley kitchen

Worktops

Next, remove worktops, being careful not to damage any pipes that run under, behind or through them in the process.

Base Units

Removing base units is a similar process to taking out wall units. Remove doors first, then unscrew the plinth. Remove all fixings, then simply pull the base units out. Take extra care when removing the sink unit as there will be many pipes that you won’t want to damage.

Tiles

Chipping off tiles should be easy using a club hammer and bolster. Turn the power off as you may be working close to sockets, and always wear safety goggles and gloves.

Flooring

Old vinyl can be taken up easily using a stripping knife. If it resists, try using heat gun to soften the glue. Floor tiles can be tricky to get up, but using an SDS drill should do the trick.

How to Heat a Renovated Kitchen

Choosing a new heating system takes careful consideration and planning. Whilst some people choose to have no heating at all in their kitchen, feeling it unnecessary in a room that often becomes hot whilst cooking, those that use their kitchens for more than just cooking, have several options:

  • The cheapest and simplest is to fit a radiator with a thermostatic radiator valve (TRV) so that it can be easily adjusted, but you will need sufficient wall space
  • Plinth heaters fit neatly into the space between the bottom of the base units and the floor. Plinth heaters can be electrical fan convector heaters operated by a switch, or can be linked to the rest of the central heating system
  • You could use heated towel rails, complete with pegs for tea towels — there is a range of radiator companies providing designs that can make the most of the tightest of spaces
  • Underfloor heating (UFH) is another popular choice for even and comfortable heat. Opting for an electric system as opposed to a water heated system means you can tackle the installation on a DIY basis.

Ventilation

Good ventilation will ensure your kitchen is a pleasant place to be, removing smells and steam and keeping the temperature even.

The size and strength of your extractor hood or fan will largely depend on the floor area and how much cooking you do.

Installing Kitchen Electrics

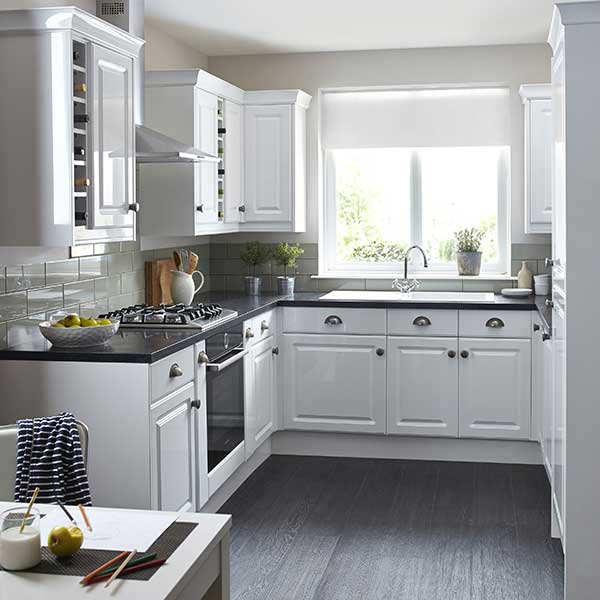

new small white kitchen

Keeping items such as the sink and cooker in the same place means wiring and plumbing work will be simpler. Chilton Gloss White kitchen from B&Q

Before your new kitchen is fitted, first fix electrical work needs to be carried out. Your electrician will need to check the existing system, as in many renovation projects a complete rewire is called for anyway.

Give your electrician a plan showing the quantity and the position of all electrical switches and sockets. You will need sockets for all your appliances and even then it is best to have some extra.

Can I Do It Myself?

Although a qualified electrician will carry out the majority of work, you can save money by doing some jobs yourself. Chasing out the walls for the new metal boxes and casing for sockets and wiring will cut down the amount of time an electrician will spend on the job.

The electrician should return to carry out second fix electrics, such as connections to plug sockets, before the worktops are fitted. When purchasing your sockets, bear in mind that some appliances, such as your cooker, will require a breaker switch which allows you to turn it off without having to pull it out and reach a socket.

Kitchen Plumbing

The plumbing in your kitchen needs to perform two functions — providing a water supply and taking away waste.

You will need a hot and cold water supply and there needs to be a waste pump from the sink to outside and a hot and cold water supply feeding the kitchen tap.

If you have a washing machine in the kitchen, this will need to be either connected to the hot and cold water, or just to the cold water, whilst most dishwashers only require a cold water connection.

Pipework

Ask a plumber to take a look at your pipework and decide whether it is worth saving it or starting again.

Your main consideration will need to be whether the existing arrangement of the pipes is going to get in the way of your planned layout for the new kitchen — unless you are putting everything back in the same place, you are likely to find that pipework will need to be rerouted.

Check old pipes for kinks and dents and inspect the joints, looking out for green marks, which indicate leaks.

Lighting the New Kitchen

grey country kitchen with island

Low-level pendants work well over island units, whilst under-unit lighting and recessed spotlights add useful background and accent lighting. Dorchester kitchen from Optiplan

Good kitchen lighting is essential — this is a space where a multitude of tasks are carried out.

  • Look at how much natural light there is in the room. If there is very little, consider ways of getting more, such as a rooflight or with a set of bi-fold doors
  • Avoid central pendants. The light they produce is not targeted enough and they tend to cast shadows around the sides of the room. Several pendants set a lower level over island units and breakfast bars work better
  • Downlights and track lights that can be adjusted are the best option, but think through their position and talk it over with your electrician, as these can be affected by shadow unless located correctly. Recessed fittings are practical as they will not get covered in dust or grease as with some other forms of lights
  • Use under-cabinet lighting to highlight worktops and, if your extractor hood does not incorporate lights, ensure there is sufficient lighting over your hob
  • Dimmable lights are best for kitchen diners, allowing you to vary the mood to suit cooking and entertaining alike

Choosing the Right Flooring

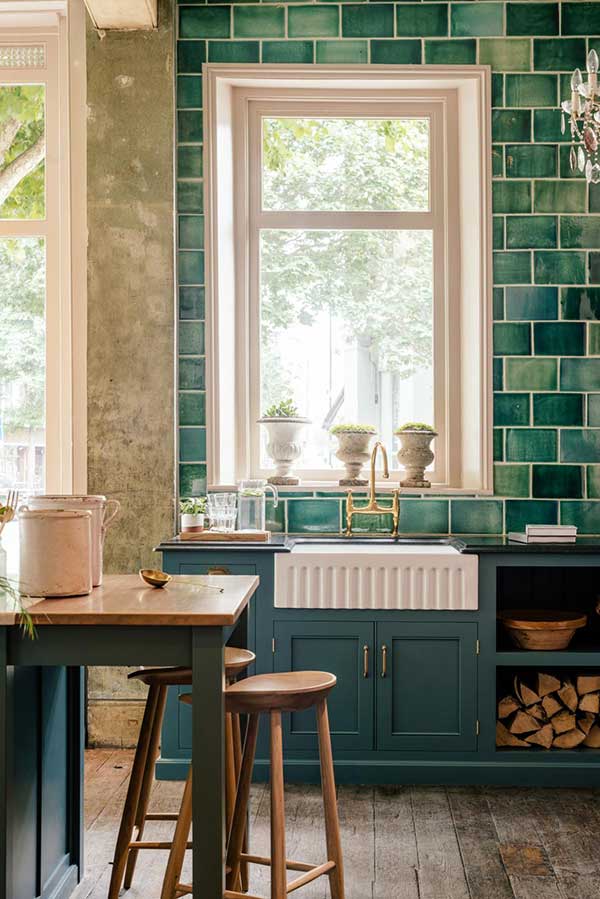

kitchen with blue tiles and ceramic sink

Re-using certain items and combining them with new elements is a nice way to inject character into a new kitchen. deVOL

Base your flooring choices on practicality and durability. You new kitchen floor needs to be able to withstand moisture and stains.

Smart choices include:

  • natural stone, such as slate or limestone (both of which will require sealing)
  • linoleum
  • vinyl
  • ceramic or porcelain tiles
  • engineered timber can be used, but it will need to be properly acclimatised before being laid and can be more prone to moisture damage that other hard flooring

It might be that you already have an existing floor that simply needs restoring. Quarry tiles were popular in Victorian and some Edwardian houses. They may well need insulating and cleaning.

Small Kitchen Considerations

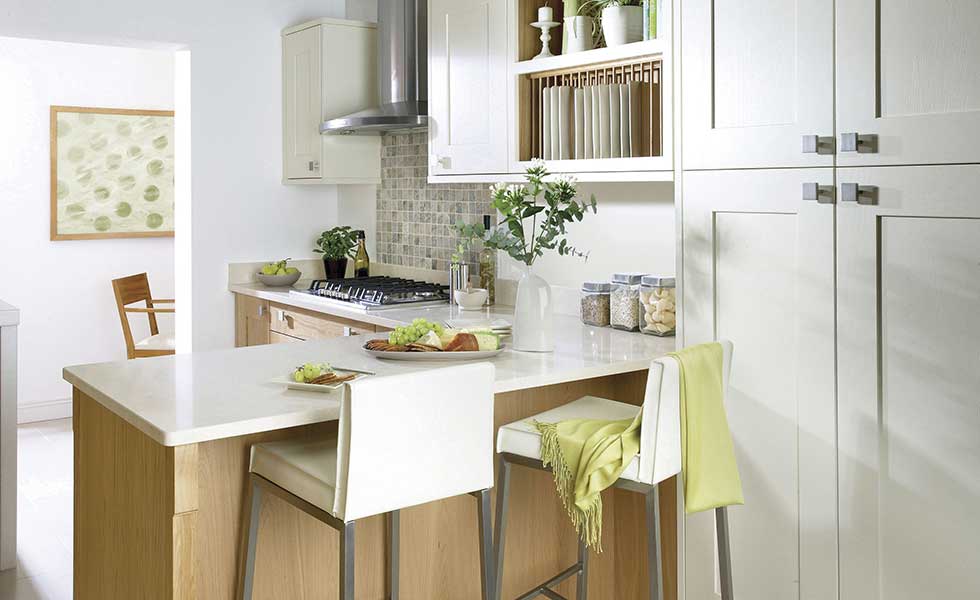

small kitchen with breakfast bar

L-shaped layouts, incorporating a breakfast bar, make good use of space in more compact kitchens. Lansdowne from Burbidge

If you only have a small space, consider whether certain functions, such as the laundry, could be carried out elsewhere, and think about whether it may be worth knocking through into another room to create an open plan kitchen diner or living area to create a greater sense of space.

(MORE: Great tips for creating your perfect kitchen diner)
