Up and Over garage doors is a general term used to describe two specific types of garage door mechanism; canopy and retractable operating garage doors.An up and over door is a one piece door panel counterbalanced with a spring(s) to make manual or automatic opening easy for the user.Up and Over garage doors are available in steel, timber and GRP.

The two different types are shown below.

Door Type 1 – CANOPY up and over garage door

Picture showing up and over garage door canopy mechanism

Canopy door mechanism

Picture showing travel of an up & over garage door with canopy mechanism

The travel on a canopy door

Canopy garage doors are the most common type of garage door found in the UK. The spring mechanism at the top of the door provides the counterbalanced lift. A canopy mechanism is typically used on doors up to 8 feet wide.

Door Type 2 – RETRACTABLE up and over garage door

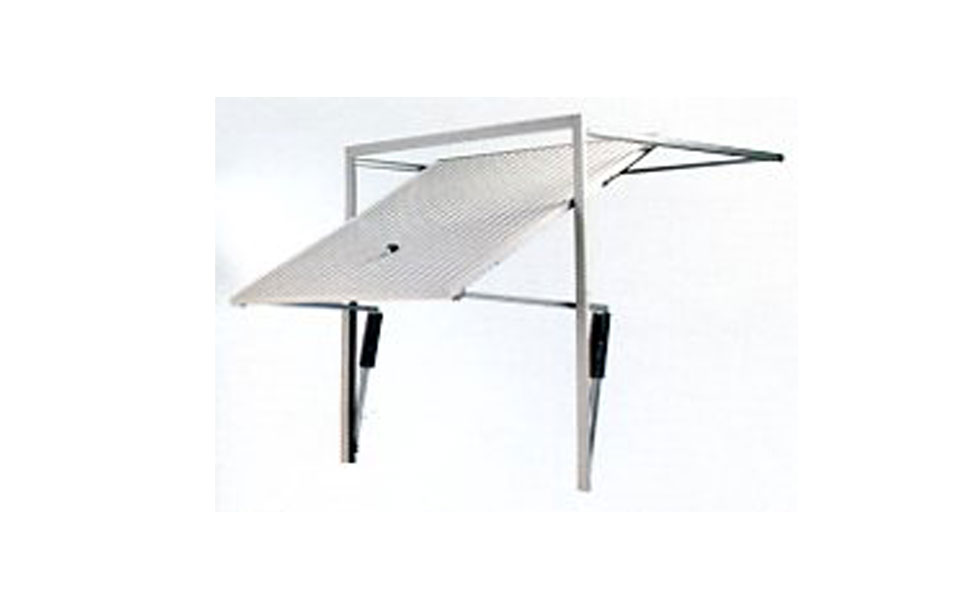

Picture showing up & over garage door retractable mechanism

Up and over garage door retractable mechanism

The travel of up & over garage door with retractable mechanism

Travel on a retractable garage door mechanism

A retractable garage door has horizontal tracks mounted on the ceiling or sidewalls to guide the door back into the garage. The door panel retracts fully into the garage.

Canopy Up and Over Garage Doors

An up and over canopy garage door forms a canopy when it is open with one-third of the door sticking out of the garage. The counterbalance mechanism is mounted onto a steel or timber goalpost frame and has no tracks hanging from the ceiling.

Canopy up and over doors arrive with the mechanism pre-installed for quick and easy on-site installation to a timber goalpost frame (70mm x 70mm in section) or factory fitted with a steel frame for very quick and easy on-site installation directly to the brickwork.

Picture showing rear of Cardale canopy garage door

The rear of typical Cardale canopy up & over door showing multi-point locking. For installation to timber frame. Pre-installed steel frames available.

Picture showing rear of Hormann canopy garage door

The rear of Hormann canopy garage door fitted to steel fixing frame. Note all mechanism fitted to the goalpost frame.

Canopy doors generally have a spring(s) along the inside of the frame crossbar. The drive-through width on a canopy door is the distance between the frame uprights as the canopy mechanism does not protrude into the opening at all. The canopy door is ideal for manual use but is not recommended for automation. If you want to automate the door now or in the future, please buy a retractable door. See below for details.

Retractable Up and Over Garage Doors

Retractable doors have horizontal tracks mounted on the ceiling or sidewalls to help the door to fully retract back into the garage. This makes retractable up and over garage doors ideal for automation.

Picture showing rear of Hormann Double retractable garage door

Inside view of a double up and over door with a steel fixing frame. Note horizontal tracks to guide door into garage.

A width restriction can occur where the pivot arms protrude into the aperture of the door. On single width doors, the Retractable Plus Gear (Hormann & Garador) or Cardale Maximizer retractable gear upgrades are available to maximise drive through width.

Picture showing how retractable plus gear maximizes drive through width

Garador and Hormann Retractable Plus Gear
Specially designed lifting arms on the Garador and Hormann Retractable Plus Gear system maximises drive through width on small single doors.

Picture showing how Cardale Maximizer gear maximizes drive through width

Cardale Maximiser Gear
Cardale single width retractable doors come with maximizer plus gear to maximize drive through width. Full opening width up to 1200mm off floor for 7’ high doors and full opening width up to 1050mm off floor on 6’6” high doors.
