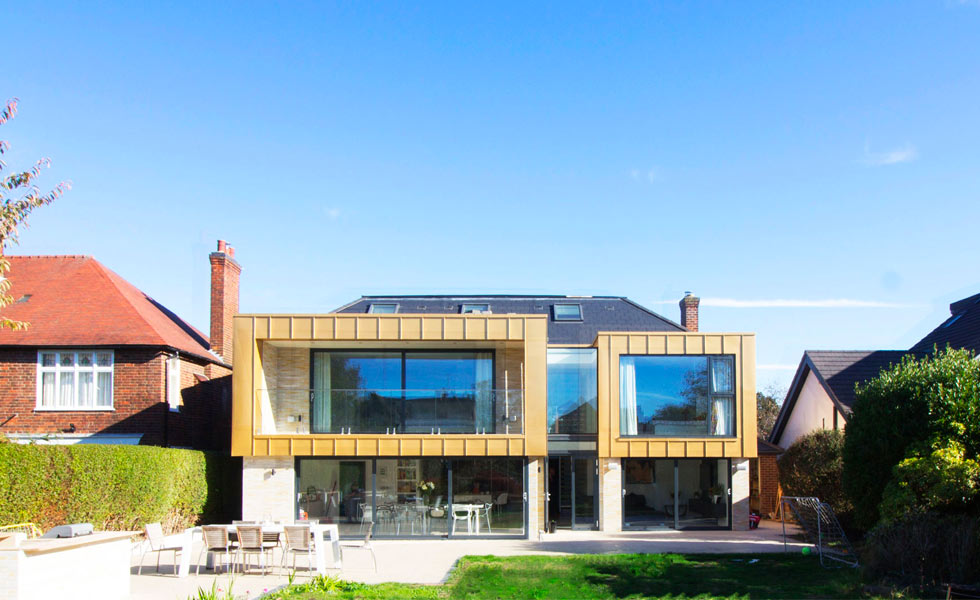

Key to the daylight optimisation strategy of this contemporary East Midlands property extension was Glazing Visions Flushglaze Eaves Rooflight and Flushglaze flat rooflight. The owners desired a sun-lit environment that maintained a connection to the night sky, without compromising security and privacy. The outcome is a beautifully constructed, sustainable family home with a blend of architectural styles.

The fusion of architectural styles is easier said than done. Nottinghamshire-based AM2 Architects, however, rose to such a challenge when they were given an unmistakably clear brief: “West Bridgeford at the front and Miami at the back”. Miami Modern (or MiMo) style architecture is itself a mixture of concepts, with a Subtropical Modernist approach being chosen here. Having a full view of the interior from front to back, as well as panoramic views of the yard were critical factors in creating a sense of openness. The addition of Glazing Vision’s Flushglaze Eaves Rooflight completes the look by flooding the living area with daylight, showcasing AM2’s skilful use of contrasting colours and materials.

The Eaves rooflight offers both clerestory and top lighting via two or more glazed sections joined together with a structural silicone seal and installed within the eaves of the property using Glazing Vision’s standard wall abutment detail. The added dimension of overhead light keeps the home well lit and temperate for as much of the day as possible.

Such a dramatic increase in sunlight does call for a number of protective measures. This particular piece is comprised of a 32.8mm silicone sealed double glazed unit with a heat-soak treated toughened outer pane and 14mm of argon. The laminated inner pane lowers emissivity, UV transmittance and noise pollution. Navigating the complexities of glass specification is no easy feat, however, Glazing Vision were able to offer guidance on this and related technical matters, helping to create a painless process for AM2 Architects throughout the project.

The frameless aesthetic of the Eaves roof light grants architects the freedom to explore ideas without compromising stylistic consistency. This versatile product can be as subtle or as forthright as you want it to be, but its principal value lies in the way it serves its surroundings. The Eaves rooflight unifies the rear facade by acting as a visual link between the two halves of the property. Indoors, the Flushglaze eaves gives an unhindered view of the surrounding landscape, as well as a much-needed connection to the sky for a family of avid stargazers. Astrophiles would similarly welcome the inclusion of a flat roof-mounted Flushglaze unit, installed within the master bedroom but with an integrated electric blackout blind for when required, creating that home observatory feel in the more private and secluded areas of the property.

This is Glazing Vision’s first collaboration with AM2 Architects after having first met at a Specifi event in Nottingham, where they discussed multiple initial ideas and plans. Jonathan Metcalfe, director of AM2 Architects spoke highly of the “efficient and painless” installation process of both the Eaves rooflight and the flat Flushglaze rooflight, but more importantly, the inhabitants of this modern marvel were “delighted with the end result”.

To find out more about design considerations for your next project, make an enquiry, contact us on 01379 658 300 or request a CPD.

Technical experts in the design, manufacture and supply of engineered, architectural glass rooflights for residential and commercial buildings. Glazing Vision are a UK manufacturer and invest heavily in new technologies, equipment and expertise, manufacturing all our rooflight products at our 65,000 sq ft factory in the heart of rural England. Since 2009, Glazing Vision has expanded internationally, and now services mainland Europe and the USA.

Glazing Vision provide a comprehensive range of rooflights to help bring light, air and space into the home, from simple fixed rooflights to more complex sliding rooflights and access configurations. As well as stock products, we custom-build rooflights to order to ensure the perfect fit to any architectural design.

These state-of-the-art rooflights are manufactured with a sleek, minimal framework to meet building regulations. We have developed a series of technical whitepapers to help you understand specifically how approved documents may affect the specification of rooflights and how building design considerations can improve compliance with the Building Regulations.

We also offer a bespoke in-house rooflight design service, employing the industry’s most talented designers and mechanical engineers to create contemporary and technologically advanced rooflights for virtually any space. We work closely with leading architectural practices across the world, using the latest CAD and 3D software to design and build unique and intelligent skylight solutions for award-winning buildings.

Glazing Vision have worked closely with the architectural community for many years, providing them with useful RIBA Approved CPD’s and helping them understand what is possible using modern design and manufacturing techniques but also to ensure that they are fully aware of the latest Building Regulations and standards that affect our industry.

Glazing Visions Secured by Design rooflight range are the first to be tested against the new standard LPS2081 Issue 1:2015. Secured by Design was established in 1989 and is the UK Police flagship security initiative which combines the principals of ‘designing out crime’ through physical security and layout across all realms of the built environment.
