An Extraordinary Subterranean Extension to a Listed Cottage

(Image credit: Simon Maxwell)

Zoë and Norman Carter are no strangers to building sites, so when they decided to relocate to be closer to their grandchildren, they knew they would be looking for another project.

“We self-built our last house in Cornwall and lived there for 10 years,” begins Zoë. “We knew that we were going to have to build again because we wouldn’t be satisfied living with other people’s decisions!

“We love the Cotswolds so began looking for building plots and buildings that could be refurbished,” she adds. What they ended up purchasing was a former woodcutter’s cottage, on a two-and-a-half acre plot, which had fallen into disrepair.

In many ways, the project Zoë and husband Norman took on represents the best of both worlds: they have restored a Grade II-listed cottage, building an extension which contrasts with contemporary styling.

(MORE: Get inspired by our gallery of radical extensions where more homeowners have embraced bold ideas)

Image 1 of 3

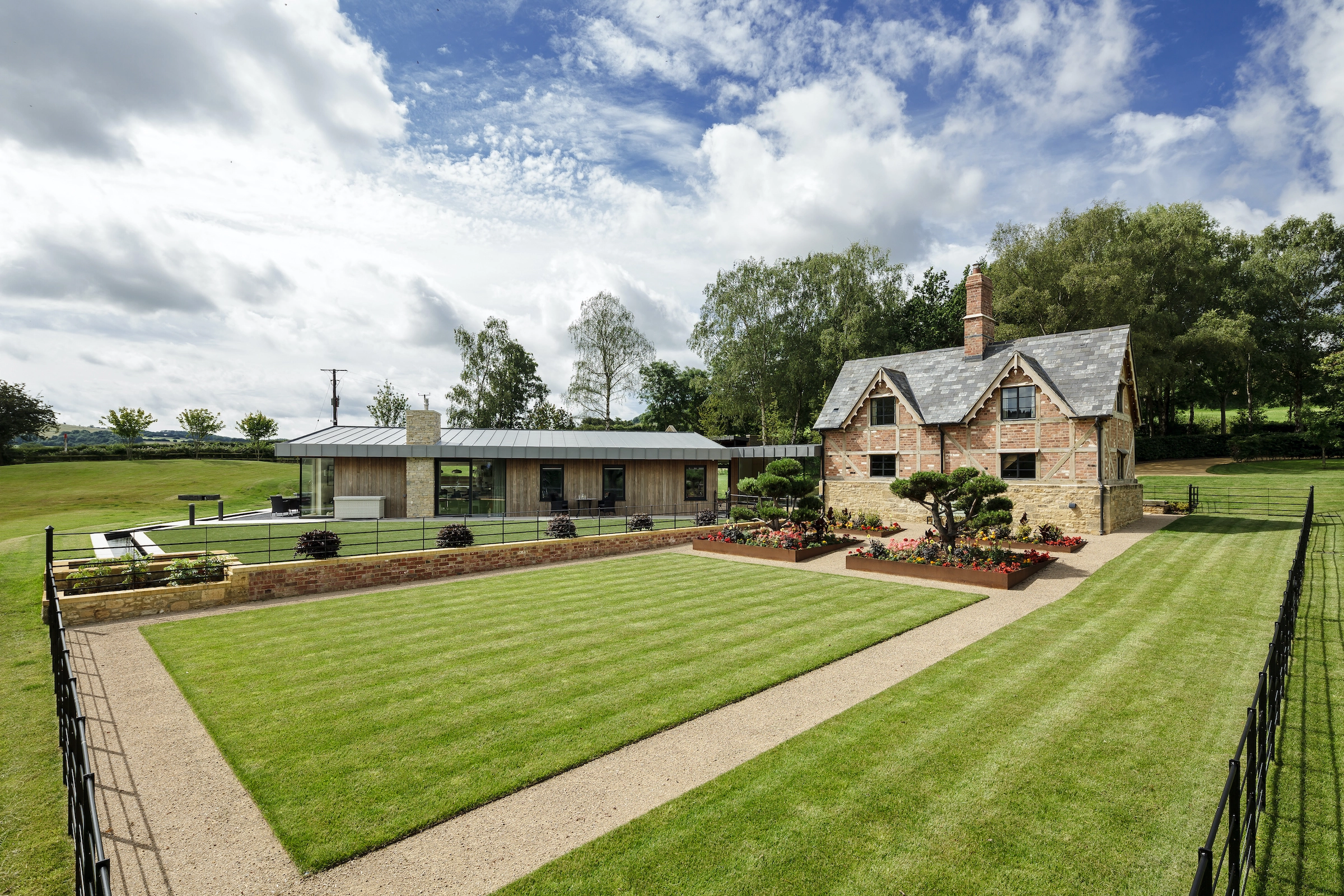

The house is listed and sits in both a conservation area and an area of outstanding natural beauty, so Norman and Zoë knew they needed help with their new application. (Image credit: Simon Maxwell)
Image 2 of 3

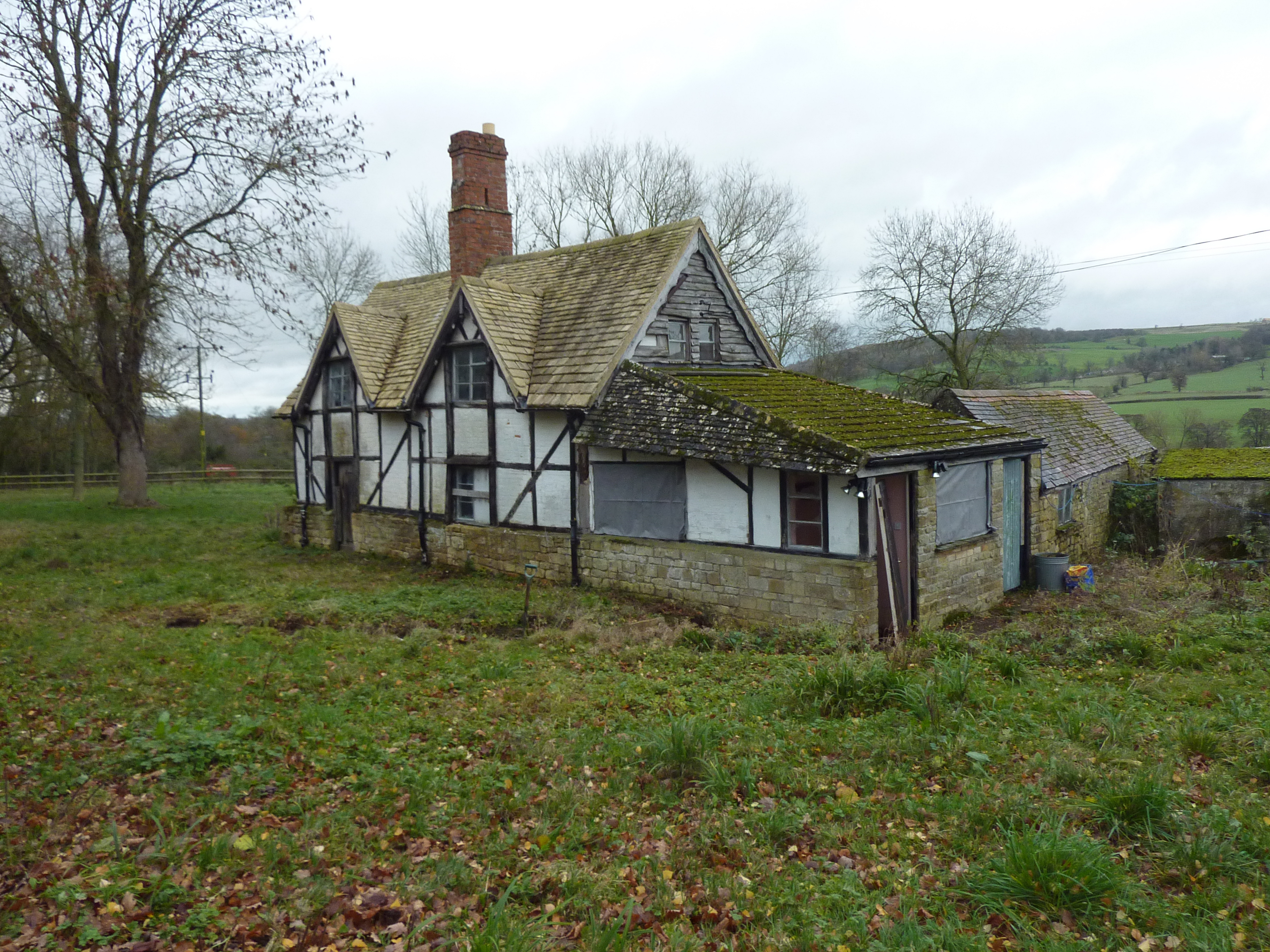

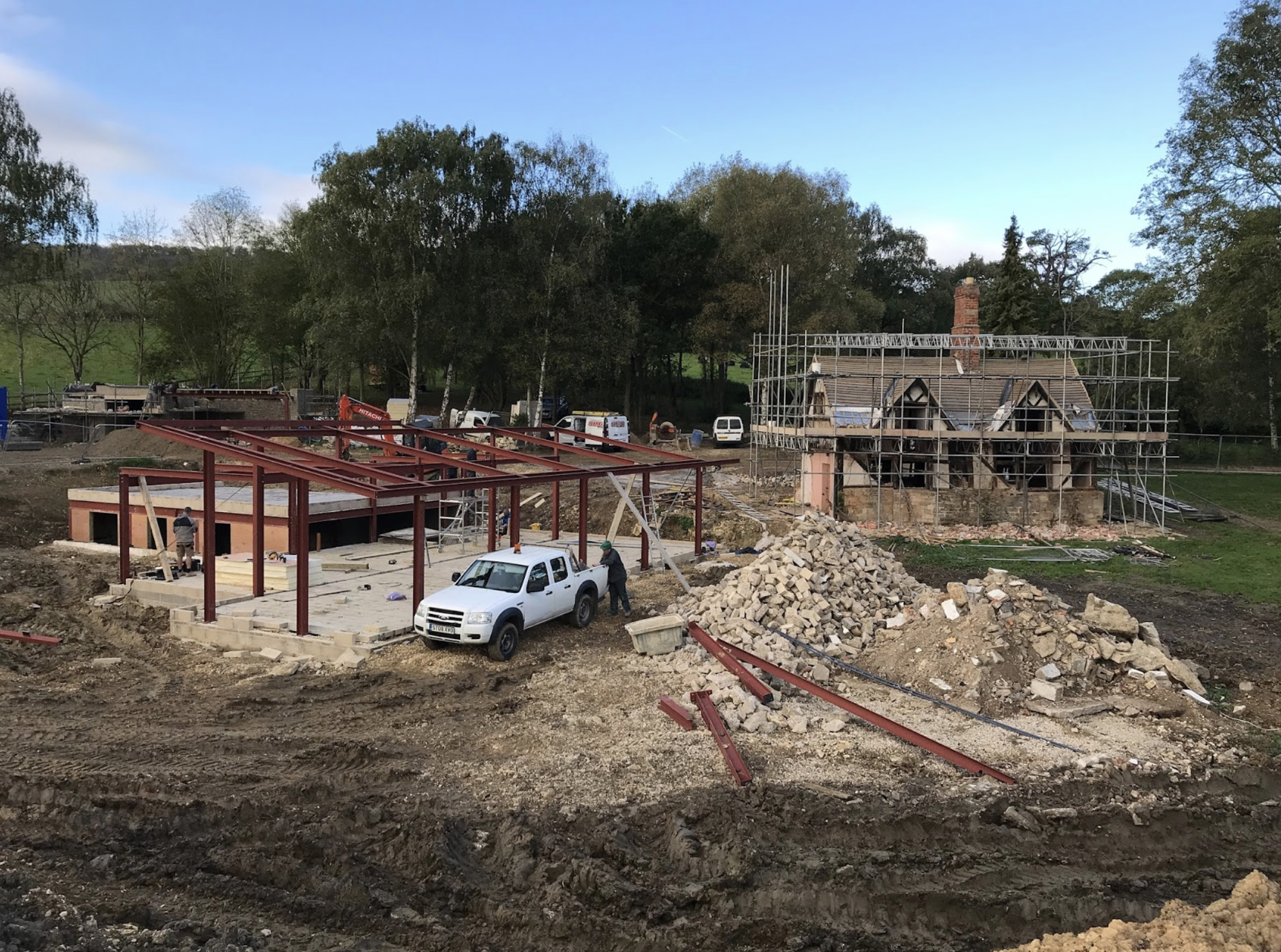

“Basically it was derelict. There was no mains water and the electricity supply was just cables going overhead,” Norman explains. (Image credit: Norman Carter)
Image 3 of 3

(Image credit: Simon Maxwell)

A Difficult Planning Proccess

Project Notes

Homeowners Norman and Zoë Carter

Location Gloucestershire

Project Contemporary extension to a Grade II-listed cottage

Build route Self project managed

Build size Cottage: 75m2; extension: 220m2; garage: 50m2

Build time July 2016 - August 2018

House cost £735,000 (Nov 2015)

Build cost £1.5million (including landscaping)

Current value £2.75million

The couple bought the modest two-bed cottage with outline planning permission for an extension which followed the line of the existing outbuildings. However, the plans didn’t meet Building Regulations, making reapplying with new designs essential.

The Carters went back and forth, revising their design and attempting to comply with planning conditions like the restricted head-height and position imposed on the extension, after numerous conversations with the conservation officer.

“The cottage had to look dominant, which we were happy with, but it is only one-and-half storeys high, and when you’re working with two-and-a-half acres it was difficult to get something of a decent proportion,” says Zoë.

“There were parts of the planning process we really struggled with and we thought ‘let’s just put it back on the market’, but then we would come here on a really clear, sunny day and realise that some things are worth fighting for, so we fought,” remembers Norman.

Image 1 of 3

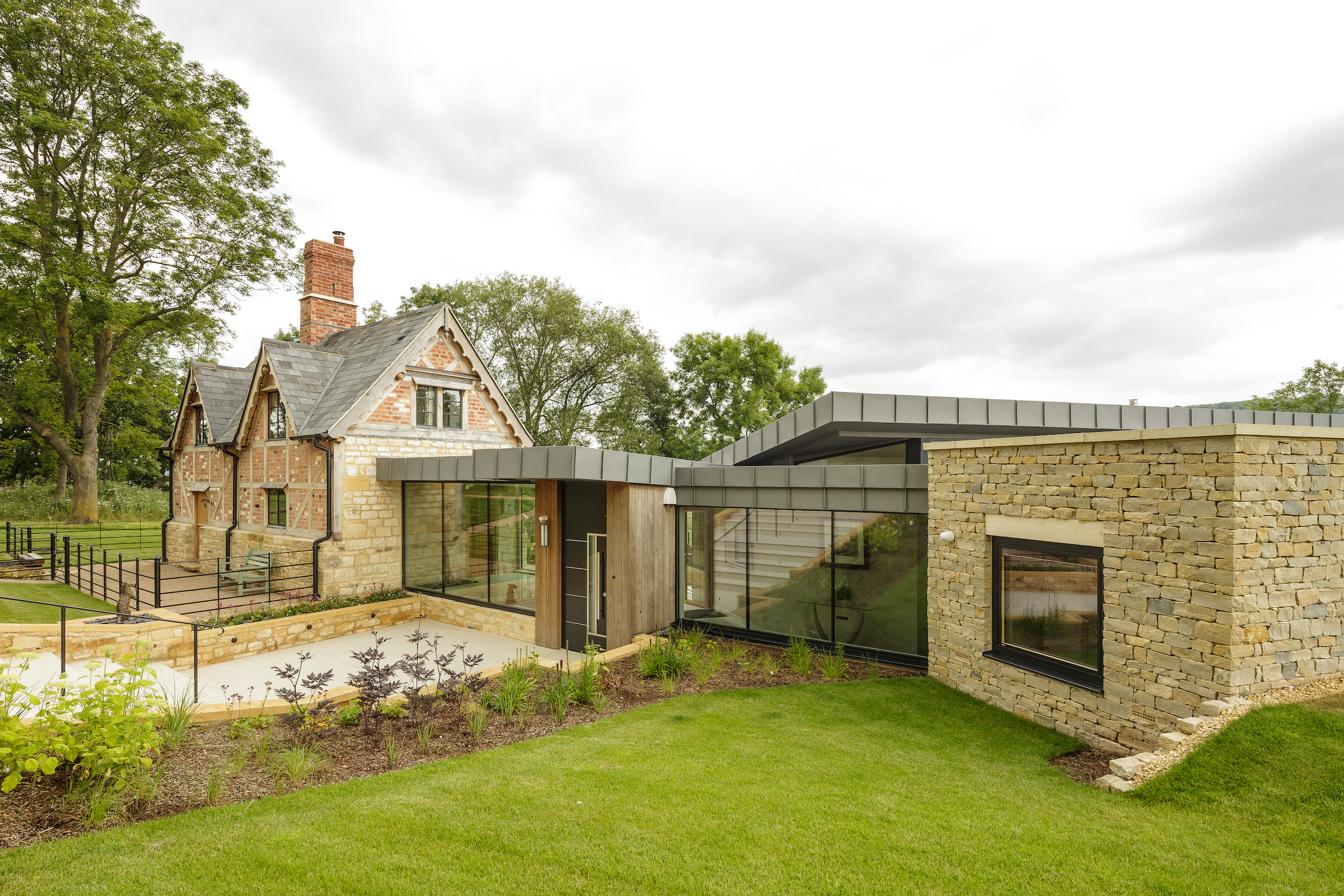

A low zinc roof and Kebony clads the exterior of the extension; much of the new addition is hidden from the road. (Image credit: Simon Maxwell)
Image 2 of 3

The inglenook lintel was stripped back and found to be elm. (Image credit: Simon Maxwell)
Image 3 of 3

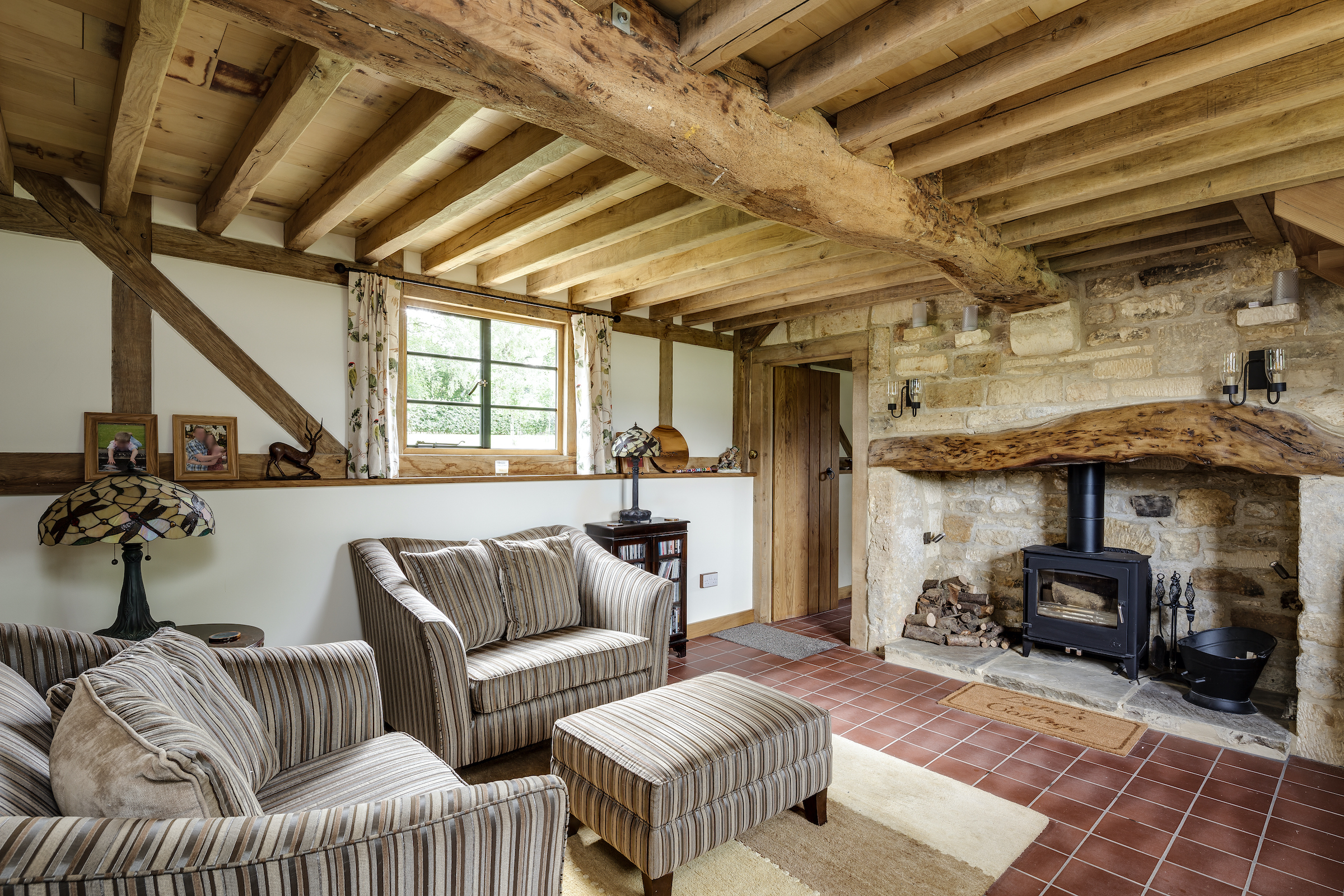

Norman and Zoë enjoy spending winter evenings in the cottage snug as the softer acoustics provide a cosier atmosphere. (Image credit: Simon Maxwell)

After their first application was refused and their original architect left the project, Norman and Zoë brought local architect John Ford on board.

Much more familiar with the local planning authority’s expectations, architect John worked with Norman and Zoë to achieve the home design they were looking for.

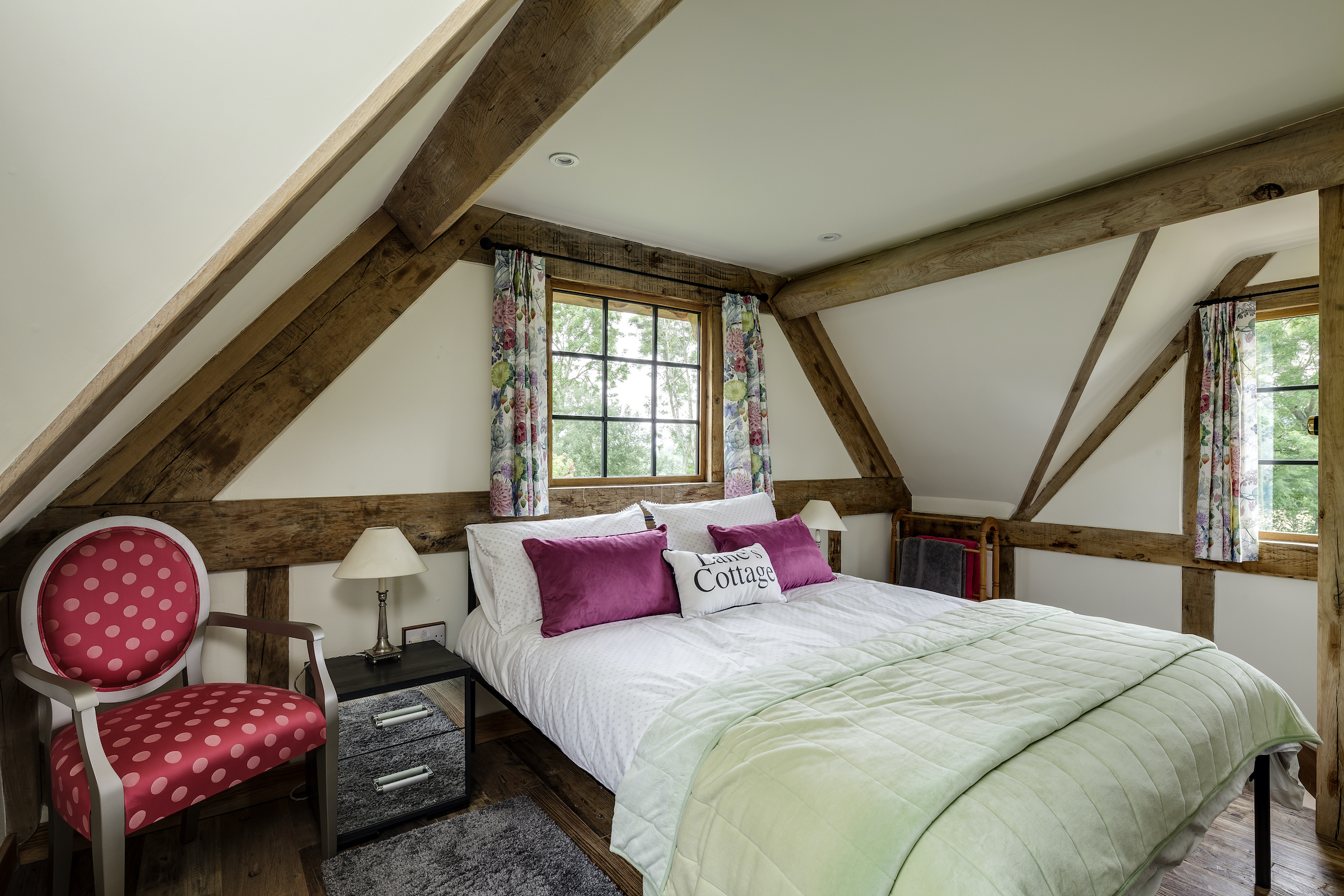

Norman had originally hoped to use the cottage as a home office and entryway to the new extension, but their design developed so the original layout of the cottage was restored with a snug, a boot room and two bedrooms for when their children and young grandchildren come to stay.

(MORE: You won't believe the incredible homes that beat tough countryside planning rules)

Restoring a Grade II-Listed Cottage

“Another year and the cottage would have fallen down, and to be honest, it would have been easier just to knock it down and start again,” Zoë reflects.

Each wall was taken down individually so new foundations could be retrofitted to counteract subsidence and the timber frame twisting.

The original oak frame was carefully restored too, with timber retained where possible and new wood spliced in where the original frame was beyond repair.

Modern additions such as underfloor heating were added and original features brought back to life, including the original inglenook fireplace. Unfortunately, during the process of renovation, the chimney collapsed, meaning the couple had to rebuild it, stone by stone.

Designing a Future-proofed Home for Life

Moving from the cottage, beautiful modern extension ideas have been incorporated, including a glass link which leads towards the new addition. This importantly ensures that Norman and Zoë’s living spaces – including a master suite with bathroom and dressing area, Norman’s office, and the kitchen – are accessible.

“Our idea is that, if we’re here for the rest of our lives, from our living area we can live on one level, and we designed the renovation so it could become a carer’s cottage. The boot room could easily be converted into a kitchen and it has its own garden cornered off so it has a little privacy,” says Norman.

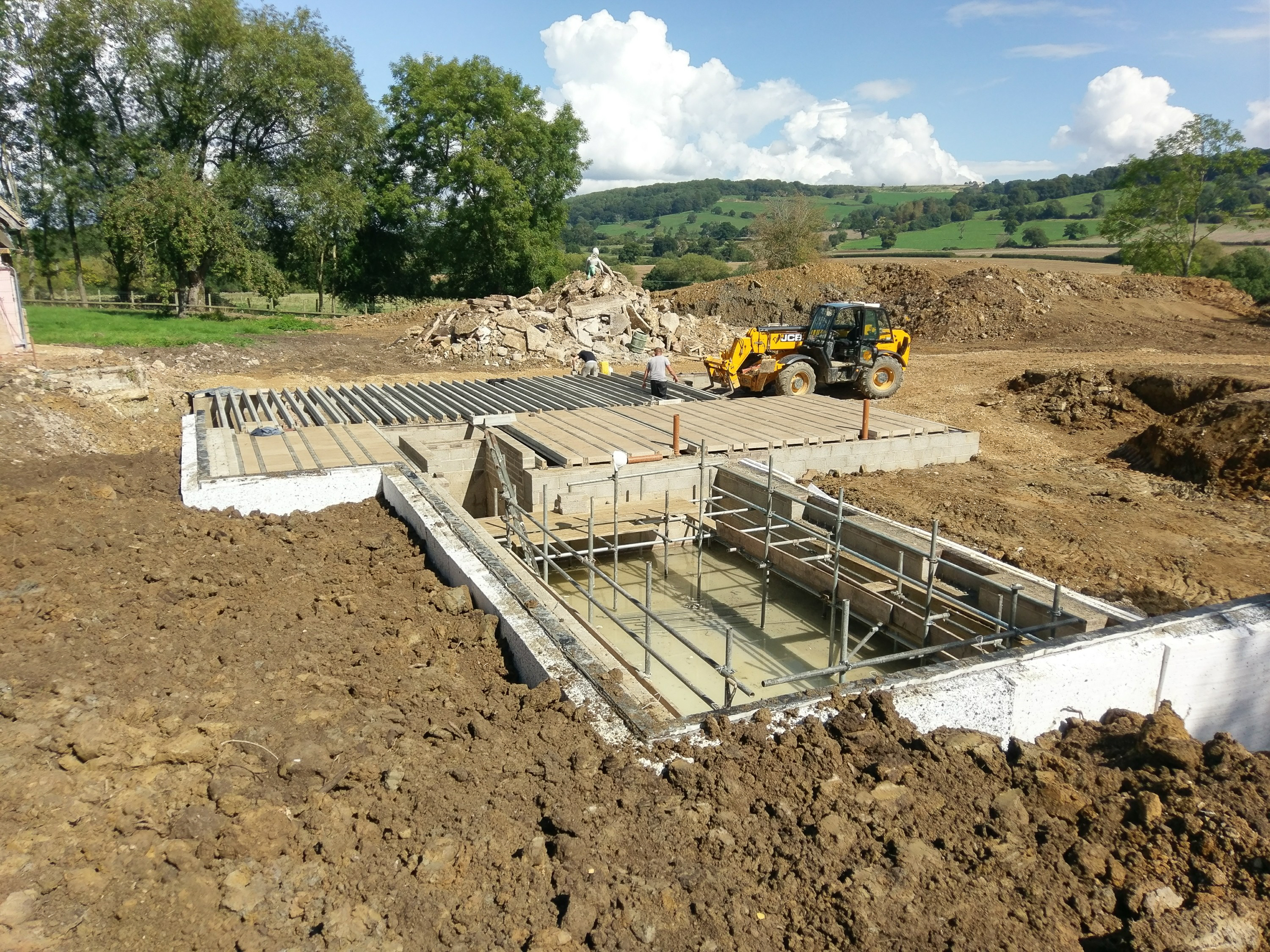

The design for this lifetime home also means that, although spanning 220m2, it remains hidden as visitors approach from the main road behind the cottage and a subterranean floor houses two further bedrooms, a family bathroom and the plant room.

“We made the downstairs wide because I was concerned it would feel too much like a bunker,” explains Norman of the surprisingly bright underground spaces.

Smart home tech also features throughout the house, including automated lighting and integrated thermostats.

Image 1 of 4

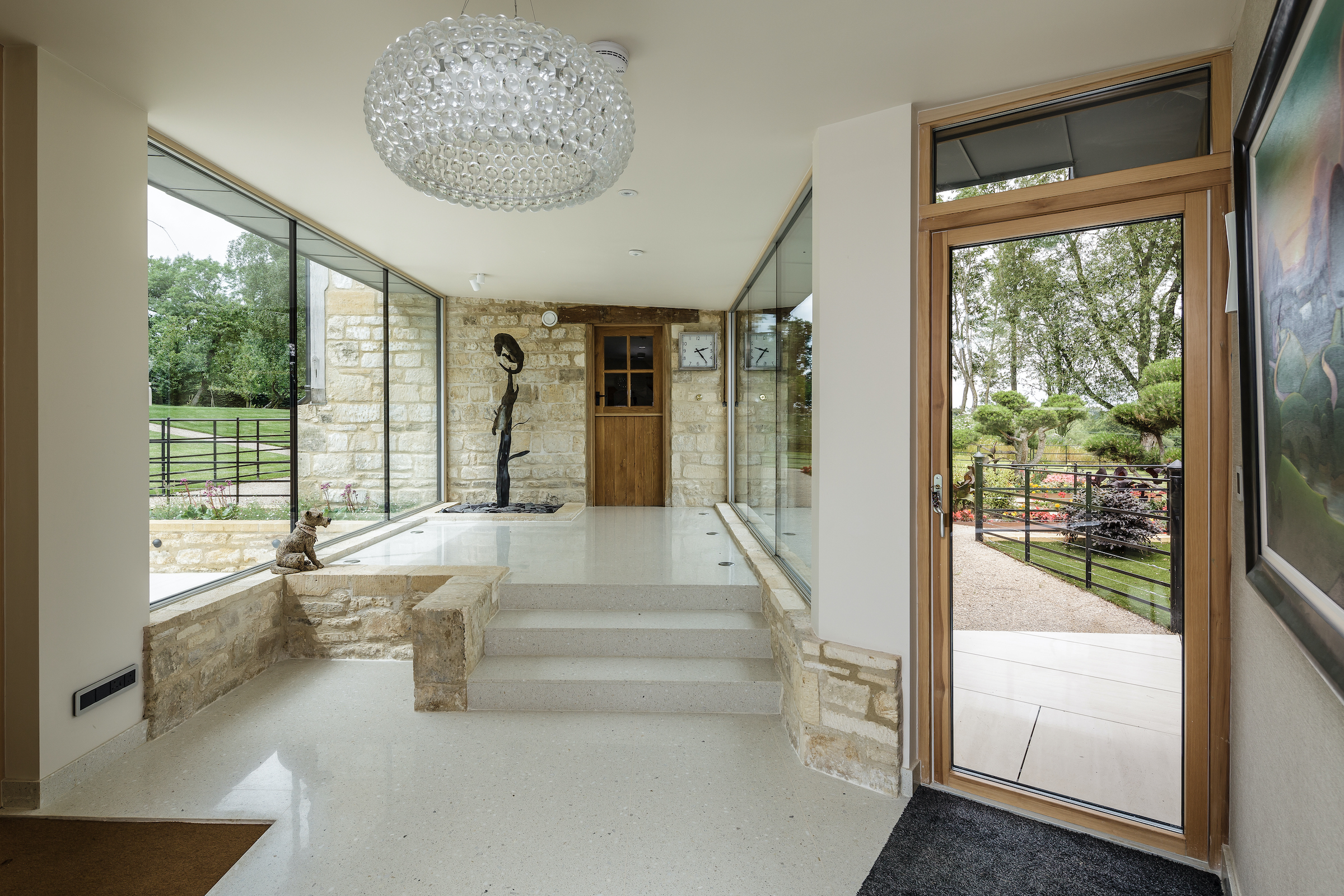

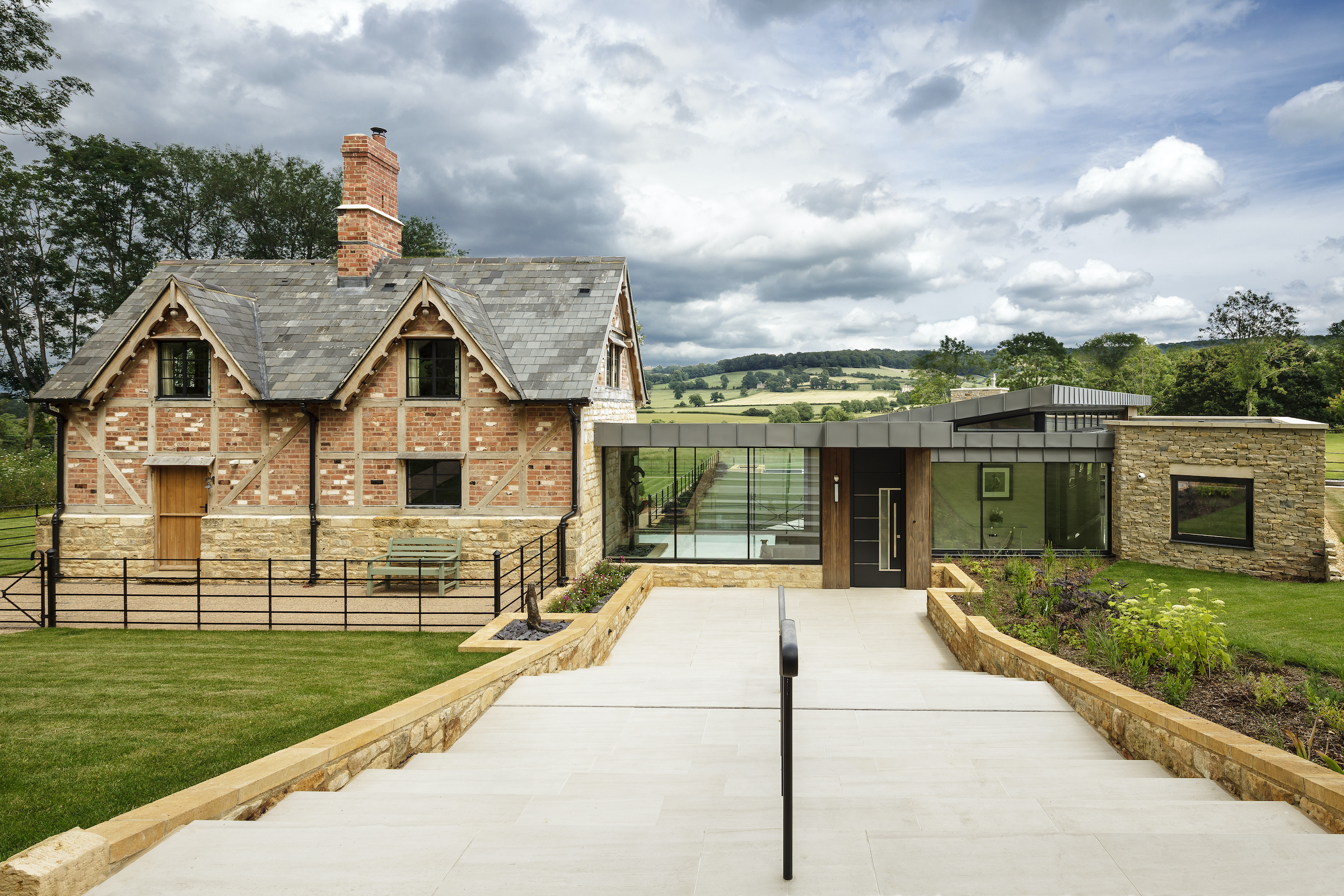

A terrazzo floor and the vast amounts of glazing means the glass link/entrance hall offers a light contrast to the cosy cottage. (Image credit: Simon Maxwell)
Image 2 of 4

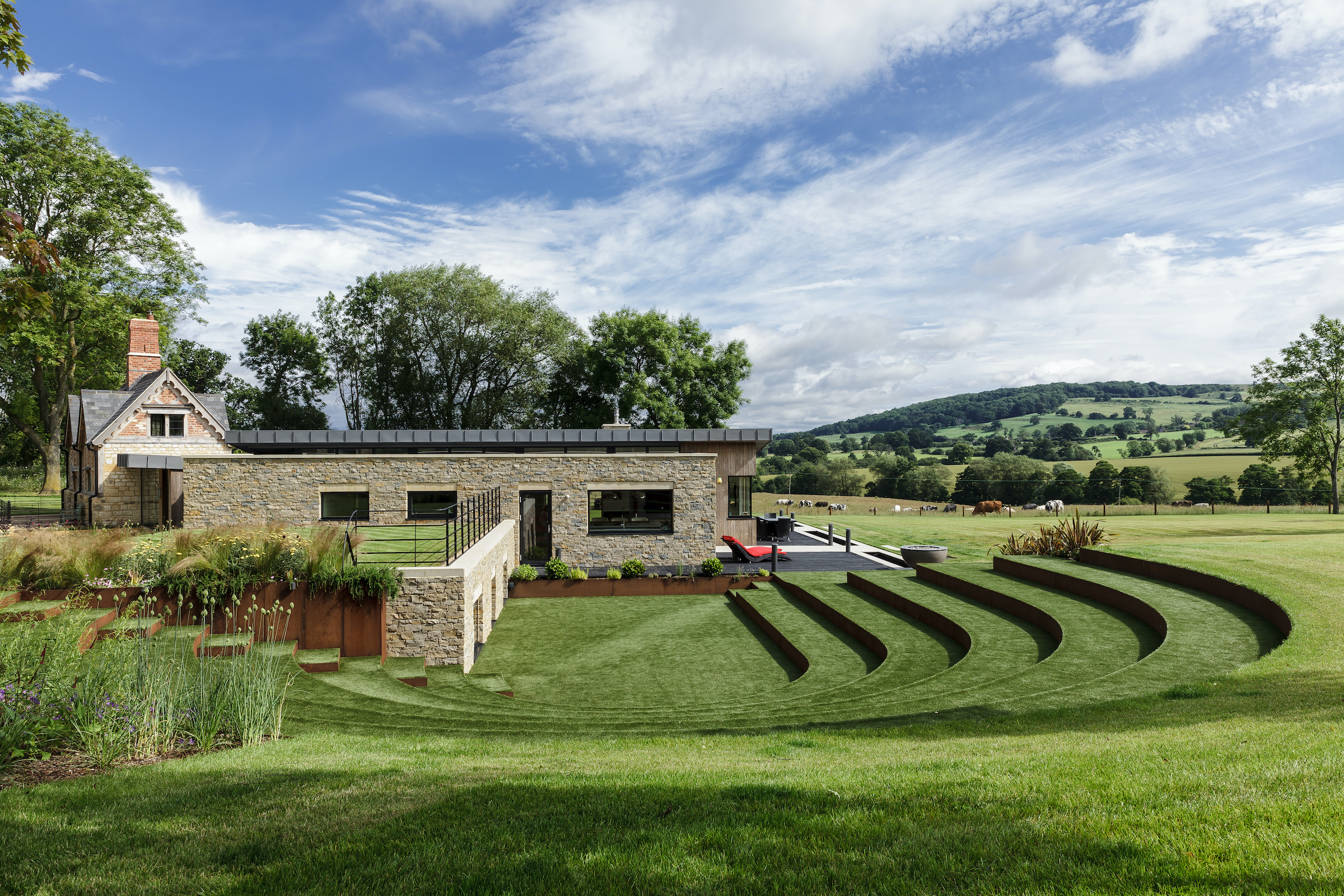

The garden amphitheatre is lined with Cor-ten steel and required 700 tonnes of soil to be removed. (Image credit: Simon Maxwell)
Image 3 of 4

(Image credit: Norman Carter)
Image 4 of 4

(Image credit: Norman Carter)

Finishing the Landscaping

Image 1 of 3

Picture windows, from Internorm, are scattered through the house to capture the stunning Cotswolds views. (Image credit: Simon Maxwell)

Picture windows, from Internorm, are scattered through the house to capture the stunning Cotswolds views.

Image 2 of 3

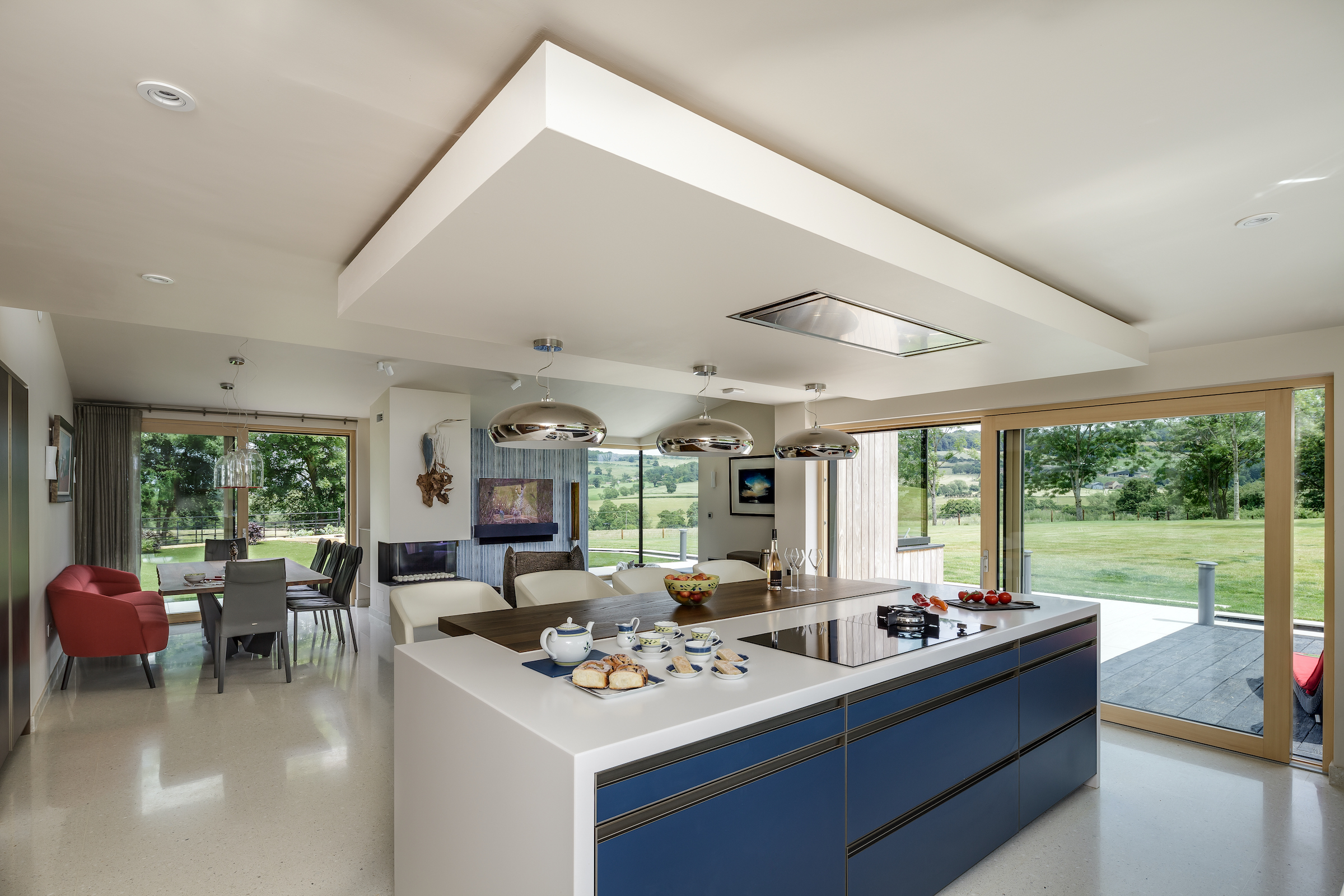

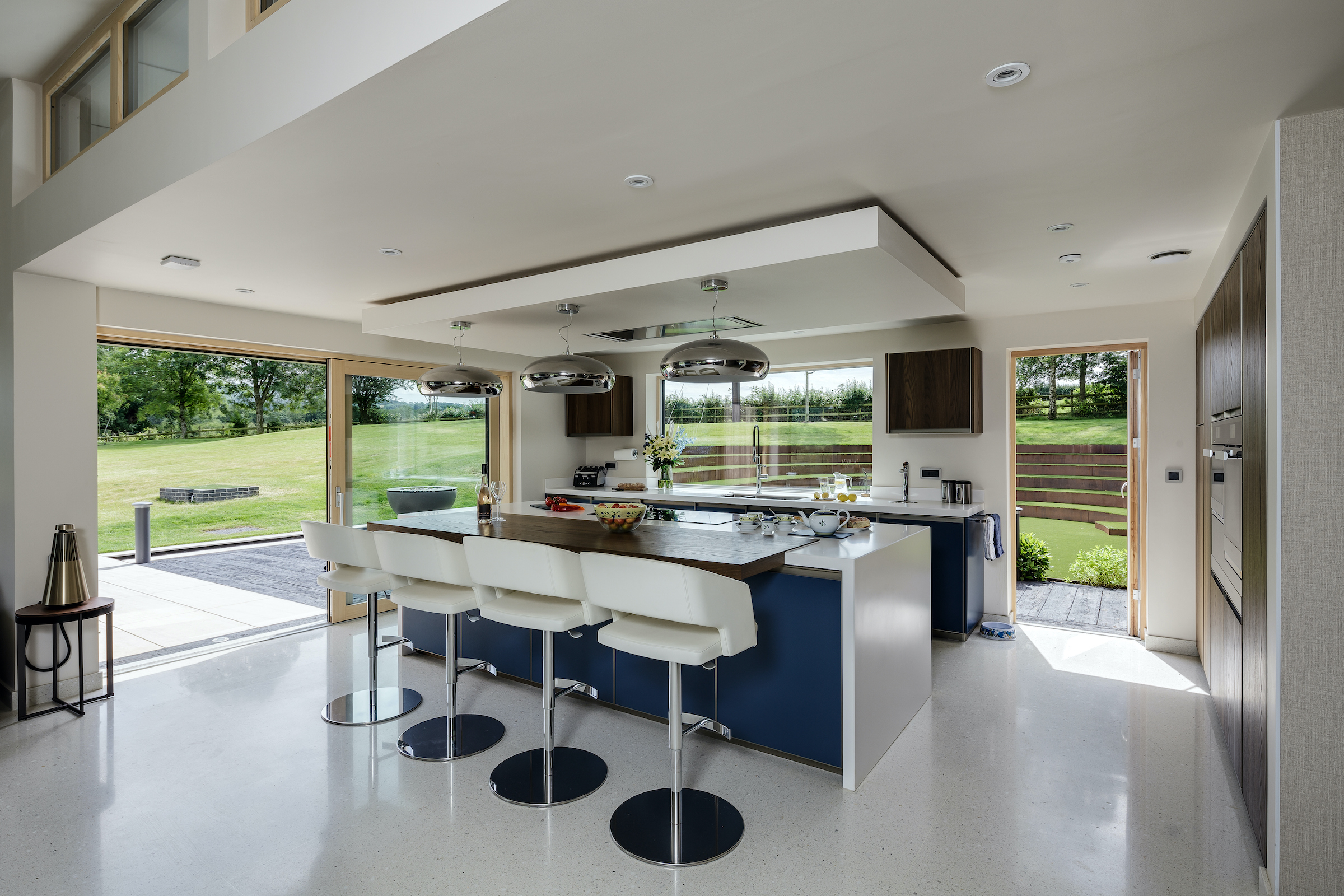

The kitchen range is by Italian company Effetti supplied by Alitalia. (Image credit: Simon Maxwell)
Image 3 of 3

(Image credit: Simon Maxwell)

After living in their flat in Bath during the project and spending the weekends living on site in a caravan, Norman and Zoë moved into their new house — 20 months after they first bought the cottage. However, the project pressed on still.

“It was important for us to continue the project until the garden design was completely finished,” Norman explains.

The result is the cherry on top of an impressive project: separated into distinct areas –  cottage garden woodland, orchard, parkland and the garden ‘amphitheatre’ – the grounds are joined together by a rill water feature and encased by idyllic countryside hedges.

“It was a very stressful project but we are very proud of it,” says Zoë. “It is wonderful to be in the house especially when the sun is shining and the garden is in full bloom — we wouldn’t change a thing.”
