Repointing brickwork should be high on the priority list when renovating a house. Missing or damaged mortar is a common source of leaks and a cause of damp in homes in need of wider renovation.
Repointing brickwork involves carefully repacking the mortar sitting between the individual bricks, or stone blocks, that make up the exterior skin of your home. Although many renovators carry our DIY repointing, given the requirement for working at heights it can be a job that is best outsourced to a professional.
Below our step-by-step guide shows you how to achieve a great finish when taking on a small repointing job yourself.
What Does Repointing Brickwork Involve?
For even more advice, information and inspiration delivered straight to your door, subscribe to Homebuilding & Renovating magazine.
Repointing brickwork is the process of renewing the outer portion of the mortar joint that connects the bricks. If you can easily see open joints around the mortar bed, then it is time to think about repointing.
Mortar is key and it’s the substance that separates individual masonry units (such as bricks or stone blocks) from one another.
It protects the building from water ingress and is also used to fill any irregularities on the bedding faces of the bricks or blocks (the bedding is the mortar used to bind the bricks to one another.)
Mortar can be made up of a variety of different materials. It is softer than bricks and stone so at some point in the life of a building, it will start to deteriorate— and this is the way things are supposed to happen.
If the mortar mix was harder than the bricks, the bricks themselves would take the brunt of weathering, causing them to erode and fail — and replacing brickwork is far more expensive and disruptive than repointing brickwork.
How Much Does Repointing Brickwork Cost?
Repointing is a straightforward job and the materials required are not expensive — but the cost of the labour involved in brickwork repointing can be quite high.
It can also be hard to find a builder willing to take on small repointing jobs, which is why many people choose to carry out repointing on a DIY basis. Don’t forget though that DIY repointing will usually require scaffolding hire.
According to Price Your Job, you should budget around £20-£30/m² for brickwork repointing, with their estimate for a three bedroom semi-detached house coming in at around £3,000 once scaffold hire, materials and labour are factored in.
What Mortar Should I Choose When Repointing Brickwork?
A large range of textures and colours can be achieved when mixing mortar. Most houses built up to and including the Victorian era used lime mortar and if your home falls into this category then this is most certainly the mix you should use.
The use of cement in repointing mixes does tend to be a bad thing in old houses (although it is still frequently done) causing decay to occur earlier than with lime mixes and damp more likely to raise its head.
Cement mortars are harder, more brittle and less porous than lime and will weather slower than the bricks themselves.
Mortars containing cement tend to be more susceptible to salt and sulphate attack, while mortars containing only lime (putty or hydraulic) and sand are not vulnerable to this kind of damage.
Lime mortars are more expensive than cement - but in the long run they can actually save money as putting right problems caused by inappropriate cement mixes can be costly.
(MORE: Find a Bricklayer)
Your Step-by-Step Guide to Repointing Brickwork
You will need:

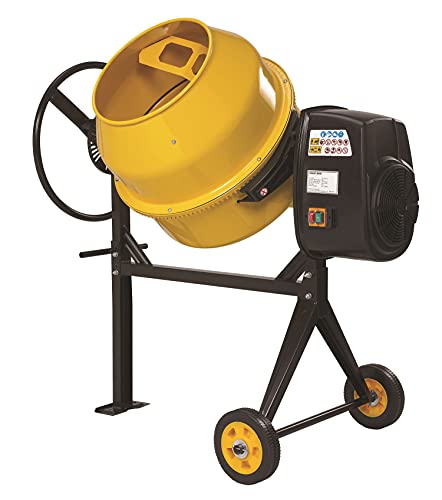

- Cement mixer

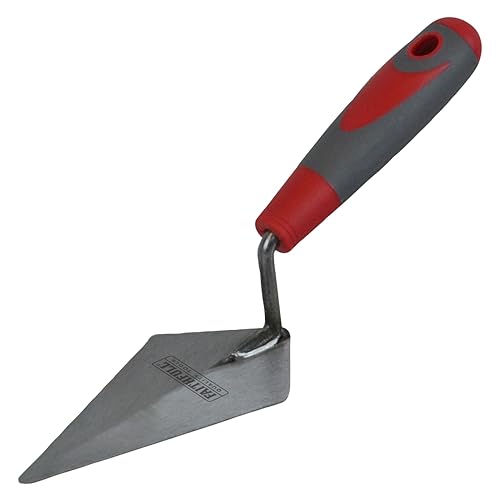

- Pointing trowel
- Mortar board
- Soft brush
- Wire brush
- White cement
1. Clear the Wall Area That Needs Repointing
Repointing brickwork is clearly high priority on this wall. Not only is there a mixture of materials, but the profile of the pointing ranges from semi-recessed to plastered-on-top-of, which is not good.
As with many renovation projects, plants have been growing up against the walls so these should be pinned back and then tethered into place before any work can start.
Repointing brickwork is a messy job so plastic sheets should be laid over flower beds, new paving and areas of grass.
2. Remove Any Old Mortar
The old pointing is removed with a hammer and chisel, with particular care taken near the areas shown in the following four steps. Disturbing old mortar around windows can affect the way they fit (and open).
The chisel is used on its own to chip out only the loose material.
3. Focus on Doorways
Power cables for external lighting are often run inside the pointing so take care.
If mortar gets pushed into the gap between the wall and the frame it can cause the door frame to move and make the door hard to open and close.
Loose mortar should be raked out gently with a narrow chisel. Metal gutter brackets are prone to falling out if they are disturbed during the chopping-out phase so work carefully.
4. Expose the Brick Edges
The ‘brick edges’ is what's left after the old mortar has been removed. The edge of the stone is revealed all round and there is now a gap wide enough to take (and hold) the fresh mortar which will soon be applied to the wall.
5. Remove Excess Dust
Plenty of dust is left in the gaps between the stones afterwards. This should be brushed out gently before repointing begins.
6. Mix the Mortar
To keep the colour of the mortar consistent for the whole job, the mix should be carefully measured out. In this case, three buckets of yellow building sand, one bucket of lime and a quarter bucket of white cement.
Each full bucket is levelled off at the top while the quarter-full bucket of white cement is measured off to a line drawn inside the bucket.
7. Work From the Top Down
Repointing is generally done from the top of the wall downwards. However, the first half metre of a solid wall without a damp-proof course (as here) holds a lot of moisture so this section is done first — giving it more time to dry.

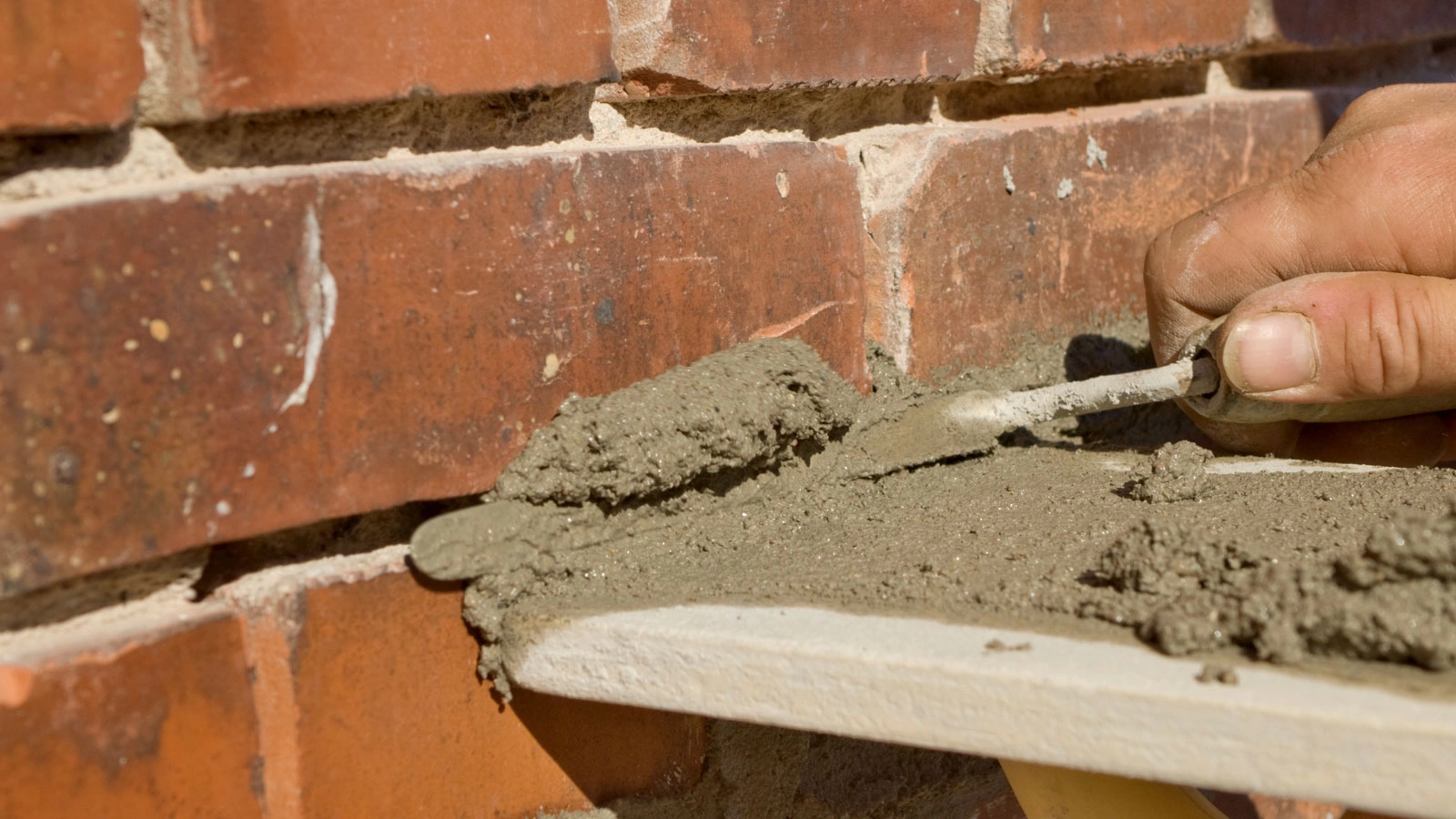

The mortar is pushed in firmly, working from right to left.
8. Fill the Virtual Joints
Once two or three courses have been repointed, the vertical joins between are filled too. Notice that the mortar is allowed to overlap all the joints and no attempt is made at this point to neaten it up.
With the bottom half metre of the wall complete, the top section is started. Within five hours, a team of two complete this stage on this 24m2 wall.
The mortar is left until nearly dry. How long the drying process takes depends on the weather and the position of the house in relation to the sun. In this case, the mortar is ready in just a couple of hours.

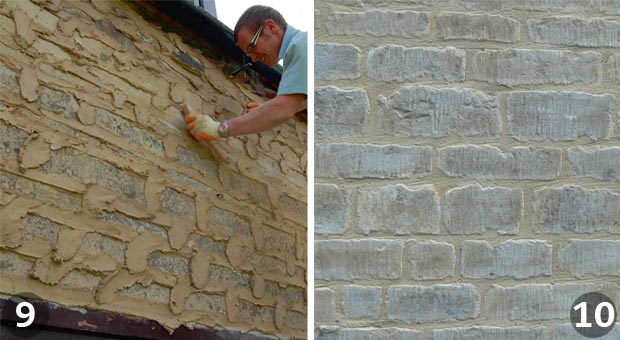

9. Remove Any Excess Mortar
A wire brush should be used to take off the excess mortar and leave a face joint that is only just recessed from the face of the wall. In other areas of the country, a deeper joint or one that is flush with the wall may be more appropriate.
The wire brush also cleans up the stonework as it moves over the surface.
10. Check the Finished Look
A close-up of the finished job. With the face joints now clearly defining the stones, the wall not only looks great, it is ready to withstand years of weathering.
Top Tips for Repointing Brickwork Yourself
- Using a narrow chisel around windows and doors minimises the risk of pushing loose pieces further in around the frames
- The use of an angle grinder should really be avoided - it is easy to slip and damage the face of the brickwork or stone and is unnecessary with most traditional lime-based mortars
- When you have a space large enough to take the new mortar, stop raking out and brush the joints down. Then give the joints a spray with water - this helps the new mortar dry out evenly. Wait for the water to dry off before repointing
- Aim to replicate the colour, texture and durability of the existing mortar. Carefully measure each component of your mortar and make a note of the quantities used to ensure each bucket load matches the last
- Begin from the top down (in order to keep any dust and water spray away from freshly repointed joints)
- A slightly open final texture tends to look more attractive than a very smooth one. An easy way to achieve this is to gently rub the filled joint with a stick or rubber, and then to softly brush it over before it dries
- To avoid the new mortar drying out too quickly, spray the joints lightly with water from time to time.
