Insulating a basement the right way to avoid thermal bridging and trapping moisture

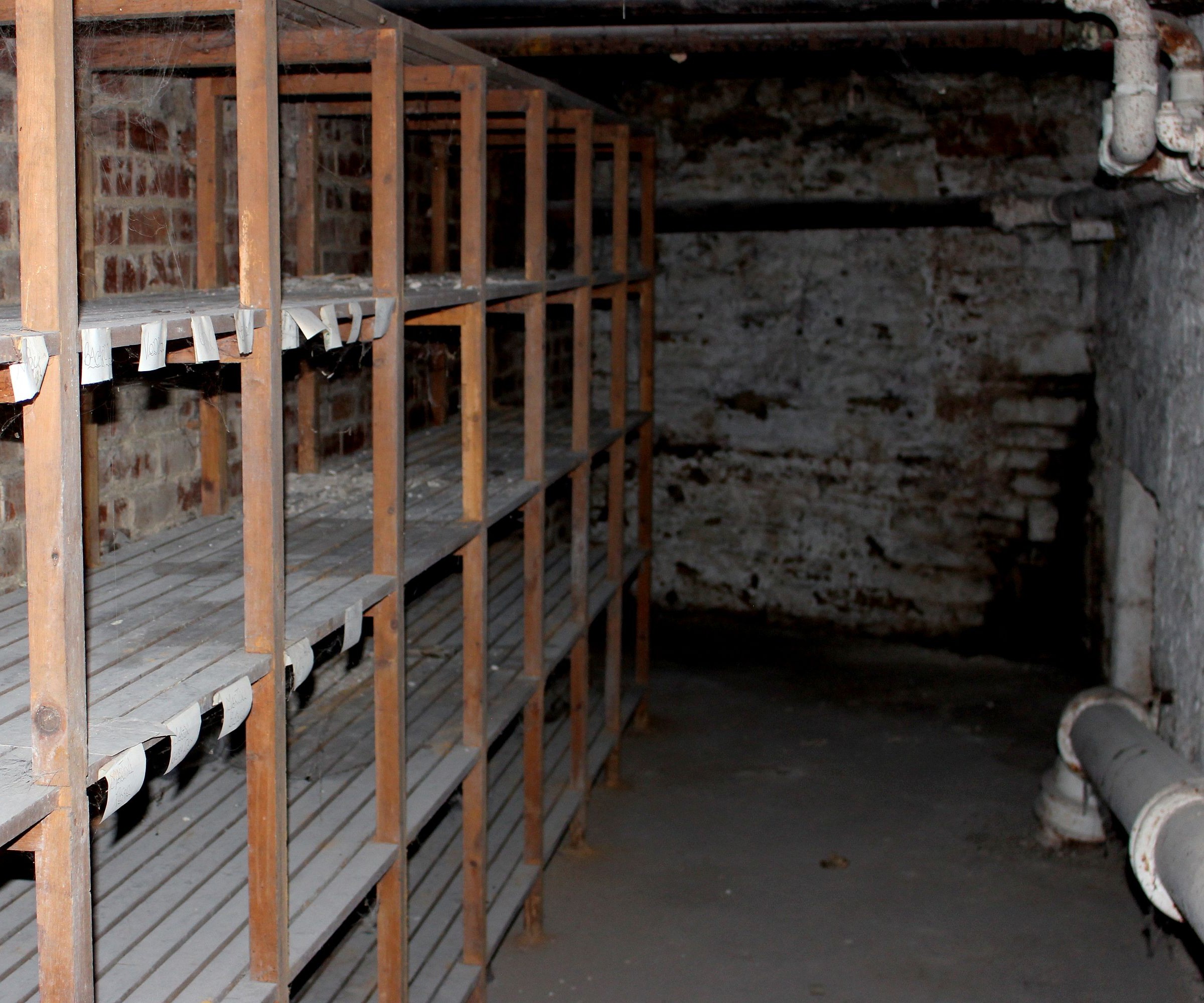

Walk into a basement and you’ll probably feel a familiar chill. Not a draught exactly, but a cool and often dank feeling, despite the heating being on full. This feeling is usually down to the surface temperature of the basement and a sign that it would benefit from being insulated.

Insulating a building below ground is fundamentally different from insulating a building above it. Basement walls and floors are in constant contact with the ground, which keeps them relatively cool all year round. Without proper insulation, the walls and floors of your basement design will draw heat out of a room, resulting in chilly surfaces, surface condensation and higher heating bills.

Most basements also experience some level of moisture from the surrounding ground. In the UK, where groundwater levels can be high and heavy rainfall is common, modern basement design often assumes that some water will eventually find its way through. Cavity drain membranes and sump pumps are therefore a common feature.

With all this in mind, insulating a basement requires a well thought through strategy that deals with the walls and floors using materials that can either tolerate damp conditions or be protected from moisture completely.

Insulating basement walls

When it comes to thermal comfort below ground, the walls tend to do most of the heavy lifting. They form the largest surface area, which means they’re also the biggest potential route for heat loss.

Part L of the Building Regulations sets the energy performance standards, including walls and floors. On a new-build project, while the target U value is around 0.18mW/m²K the actual performance is considered as part of the overall energy strategy and within the SAP calculation for the building.

In basement conversions the situation is slightly different. Space is often limited and the structure already exists, which means achieving the same insulation thickness as an above-ground wall is not always possible. In my experience building control officers tend to take a pragmatic view in these situations. They recognise the constraints and usually look for reasonable improvement somewhere around 0.30 W/m²K, provided there’s no condensation risk.

Insulating a basement floor

As with basement walls, a concrete slab sitting directly on the ground will steadily conduct heat away from the room if it isn’t insulated. This creates cold surfaces and increases the amount of heating needed to keep the room warm.

When considering your basement conversion ideas, bear in mind that the existing slab becomes a renovated thermal element once insulation and a new floor build-up are installed. This means building control will normally expect the upgraded floor to have a U value of 0.25 W/m²K.

Floor insulation can be installed below the slab, above it, or occasionally in both positions depending on the waterproofing strategy. In basement conversions insulation is usually added above the existing concrete slab, which creates a few practical challenges. Adding rigid insulation boards and a screed raises the finished floor level, which reduces headroom. Where headroom is tight, this can require adjustment of stair risers and door heads, which is often easier said than done.

What to consider before installing insulation

Meeting Part L requirements in a basement isn’t just about achieving a particular U-value. What building control officers usually want to see is a sensible insulation strategy that works alongside waterproofing and ventilation systems.

1. Ventilation

Basements are naturally cooler environments and warm air from the upper floors often drifts downwards carrying moisture with it. If that air reaches a cold surface it will condense. This is where ventilation becomes important.

As insulation levels improve, uncontrolled air leakage reduces so a basement will become more airtight. Whilst this is good for energy efficiency, it also means ventilation systems are required, especially in basement bathrooms, utility rooms or gyms.

2. Waterproofing

No insulation system will work properly if the structure itself is damp, so waterproofing is a critical starting point in any basement design and insulation strategy.

In the UK, three main approaches are used. Barrier protection relies on external tanking to keep water out entirely. Integral protection uses waterproof concrete that limits water penetration. Drained protection takes a different approach, using cavity membranes and sump pumps to manage water that enters the structure. In practice, many basements combine more than one method for added security.

Building control officers will ask questions when they see insulation being installed against basement structures that haven’t been adequately protected. So, always make sure the insulation system is properly designed and follow it to the letter.

Insulating a basement checklist

Whilst the main focus when insulating a basement are the walls and floor, the smaller details can have just as much impact so mustn’t be overlooked.

1. Making your insulation work with basement drainage

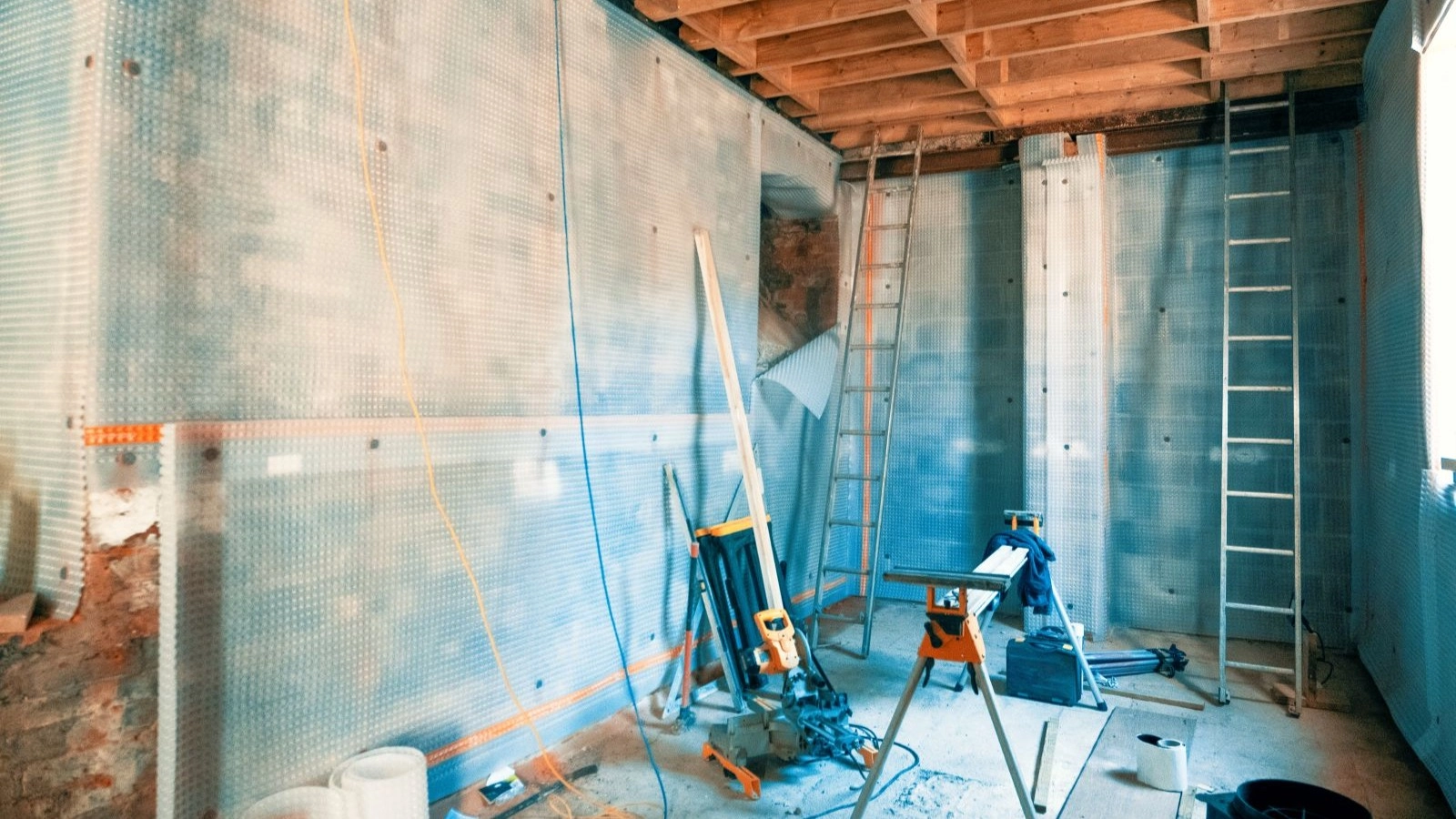

Many modern basements use what’s known as a Type C drained protection system. A cavity membrane is fixed to the inside face of the structural wall, creating a small drainage space. Any moisture that penetrates the structure is directed down the membrane into perimeter channels and then into a sump pump. The insulation and wall lining are then installed on the room side of this system. This is where things need to be thought through carefully. The entire system relies on water being able to move freely down the wall and away from the structure. Insulation must therefore never block the drainage path behind the membrane or be allowed to get wet. Fixings that pass through the membrane and the insulation therefore need to be properly sealed.

2. Avoiding thermal bridging with your insulation

Thermal bridging is an area where basement projects often run into trouble. Junctions between the wall and floor slab, structural beams and stair openings can all become weak points if insulation isn’t continuous. Get this wrong and small mistakes quickly become condensation problems.

3. Tackling pipes in a basement

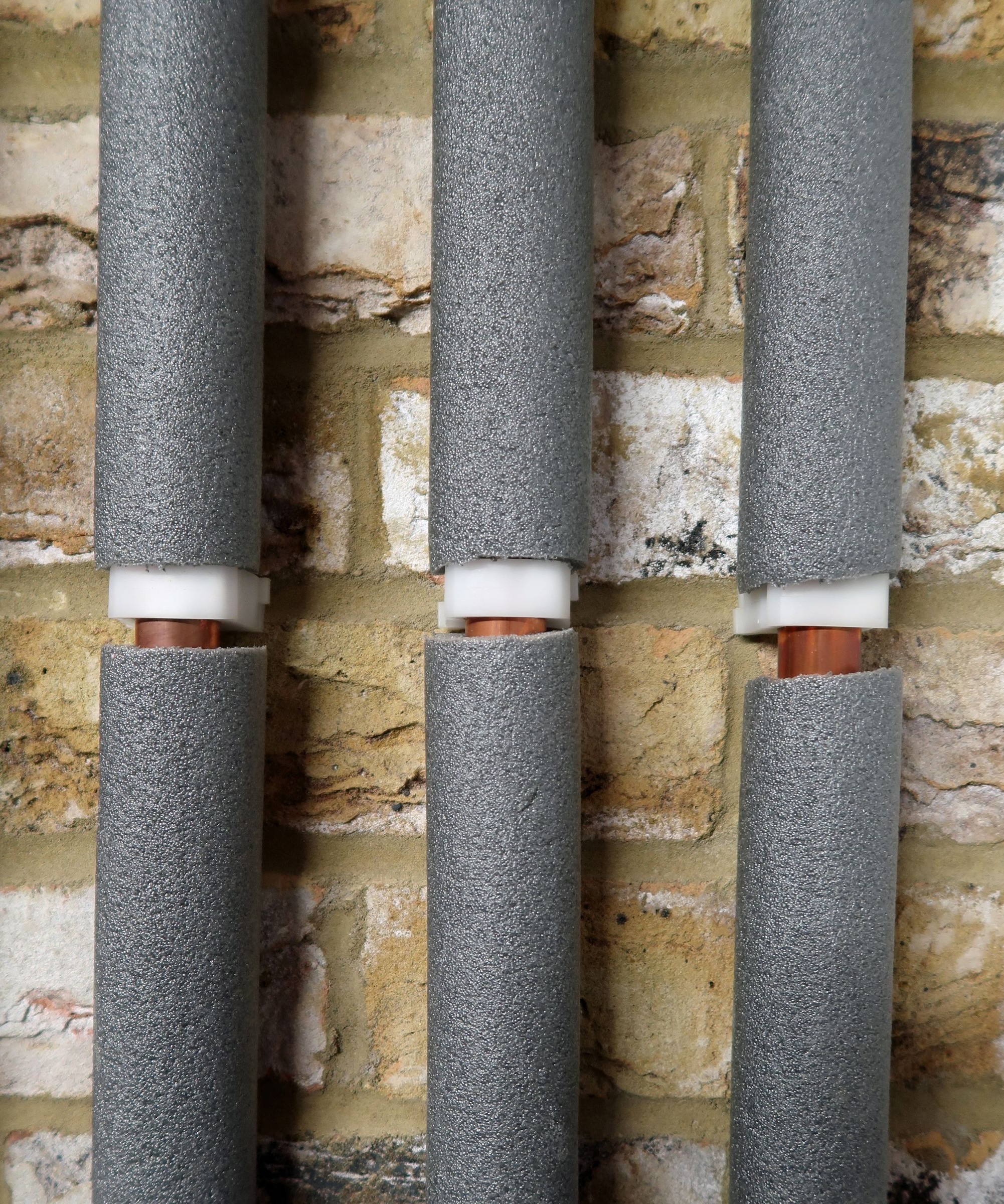

Cold water pipes running through a basement are very prone to condensation when warm air meets the cooler pipe surface. Over time this moisture will soak into plasterboard, timber or insulation, becoming a surprisingly persistent damp problem. Basements are often used to house heating equipment, so insulating these pipes and the room properly helps prevent both heat loss and reduces condensation risk.

4. Insulating suspended timber floors

In older houses where a suspended timber floor sits above a cellar, insulation might be needed around the perimeter of the floor joists. Mineral wool or rigid boards can usually be installed here but make sure that the ventilation paths are maintained. Blocking air bricks in an attempt to make the floor warmer can trap moisture, eventually leading to timber decay.

Choosing the right basement insulation materials

Choosing insulation for a basement is about more than simply achieving a good U-value. Below ground, materials are working in a cooler, more humid environment, with a greater risk of moisture so durability matters just as much.

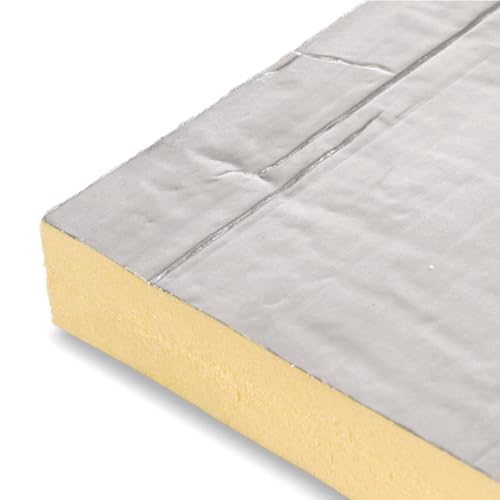

• Rigid PIR boards are commonly used to insulate basements. They offer a high thermal performance for their thickness, with a typical thermal conductivity around 0.022 W/mK. This allows good U-values to be achieved without using excessive thickness, often important in basement conversions where headroom is already limited. In new build basements PIR is commonly installed either as internal wall insulation over cavity drain membranes or within insulated floor build-ups above the slab. The key limitation however is moisture. PIR performs very well when dry but is not designed to sit in damp conditions, so must always sit on the warm side of the waterproofing system.

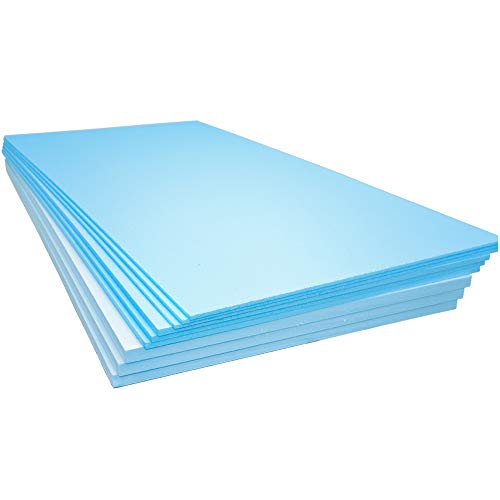

• Extruded polystyrene – XPS – is often chosen where there is a greater risk of damp. Its thermal conductivity is slightly lower performing than PIR, typically around 0.030 to 0.034 W/mK, but it has a closed-cell structure that absorbs very little water. This insulation board is well suited for basement floors and areas close to drainage channels where occasional moisture may occur. In new build basements it’s sometimes used beneath the slab or externally against retaining walls where its compressive strength and moisture resistance are particularly useful.

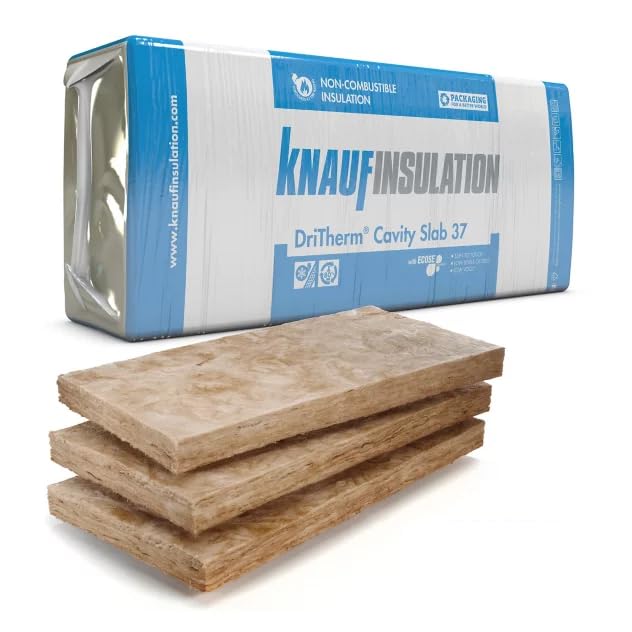

• Mineral wool tends to appear in basement projects within framed internal wall systems or suspended timber floors above cellar spaces. Its thermal conductivity is typically around 0.034–0.037 W/mK. Thermally it performs perfectly well, but moisture is its weakness. Once saturated, mineral wool insulation loses much of its insulating performance and can slump. For that reason it’s best kept entirely separate from any damp structural surfaces.
• Natural eco insulation materials such as wood fibre boards are occasionally proposed because they can buffer small amounts of moisture. In above-ground walls that behaviour can be helpful, but basements are a different environment. In my experience these materials can work, but only where the waterproofing strategy is exceptionally reliable and the internal humidity is carefully managed.
• On new build projects, insulated concrete formwork offers another route altogether. Here the EPS insulation typically has a conductivity around 0.032–0.036 W/mK, and forms part of the permanent shuttering for the concrete wall. Thermally this can work very well because the insulation is continuous, but junctions shouldn’t be overlooked. Where the wall meets the slab, stair structures or upper floors, maintaining insulation continuity is what prevents cold bridges forming later on.

Shop basement insulation

Insulating a basement is all about getting the detail right. Below ground, careful detailing isn’t optional, It’s what separates a cold, damp cellar from a genuinely valuable part of the home. Basements are systems, so insulation products must work alongside the waterproofing and ventilation systems rather than against them.

By using the most appropriate insulation products in the right place, a well-insulated basement stops feeling like a compromise and starts to feel just like any other room in the house – warm, comfortable and free from the musty chill that older cellars are known for.
