Sharpening a drill bit is rarely a second thought for most DIYers. It's straight out of the case, into a chuck and start drilling. But drill bits are not indestructible and are prone to wear and tear like every other tool. Eventually, the crisp and clean drill holes you once admired are no longer up to scratch.
You’ll have to work harder, regardless of the type of drill bit you have. So it makes sense to give your drill bit a quick sharpen when needed to bring it back to life. Plus, it will save you the cost of replacing your bits regularly. Here you’ll find out what tools you’ll need and how to do it yourself.
Leigh Start joined The Metal Store in 2015 and was appointed Managing Director in 2023. With nearly a decade of experience in the metal supply industry, Leigh has played a key role in driving the company’s growth and expanding its service offering.
Paul started his career over 35 years ago working for Delta Metals plc for several years. That was when he spotted an opportunity to develop and build metals4U as a powerhouse for the online supply of metals, so he took the chance and has never looked back.
Why you need to sharpen a drill bit
A new drill bit works better than a used one, so sharpening it will bring it back to its best. Leigh Start, MD of Metal Store, says, “A sharp drill bit cuts cleanly and efficiently, while a dull one forces you to apply more pressure, generates excess heat and is far more likely to wander off your mark.”
Article continues belowPaul McFadyen, MD of Metals4U, suggests regular sharpening is key: “Sharpening a drill bit is an essential part of drill maintenance, and improves both safety and performance of the tool.” He adds, “A blunt drill bit is less effective at drilling into material, particularly when drilling into metal and masonry, taking longer to drill to the required depth.”
Leigh Start explains what can happen with a blunt drill bit. “When drilling into metal specifically, a blunt bit can also work-harden the surface, making it even harder to cut through. Regular sharpening helps protect both your drill bits and the workpiece.”
He adds, “A dull bit also increases the risk of grabbing or snapping, particularly with smaller diameters, which can damage both the drill and the material being drilled.”
Shop these tools to sharpen a drill bit

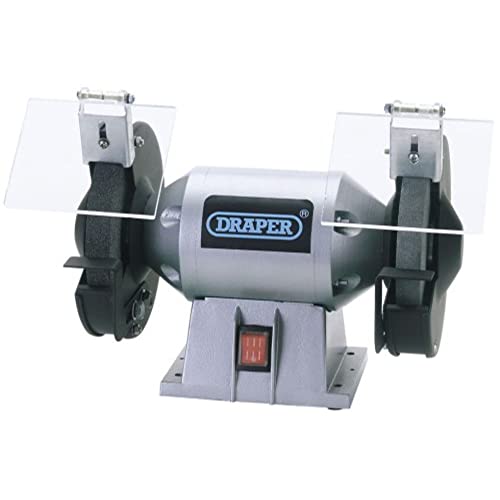

Invest in this bench grinder if you want to sharpen your own drill bits. Features coarse and fine grinding wheels, eye protection shields, spark deflectors, wheel guards, and adjustable tool rests.

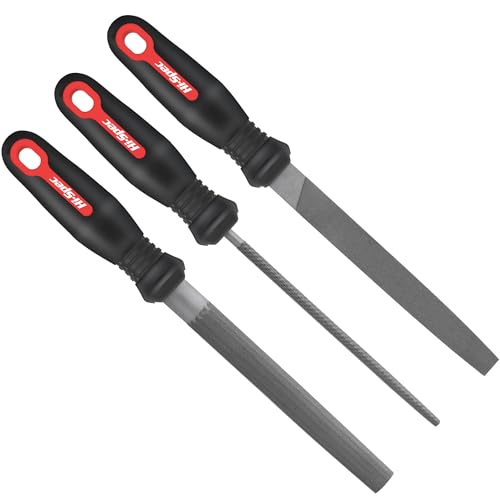

This set of full-length files is designed for de-burring, shaping, trimming, and smoothing metal, wood, and plastics.

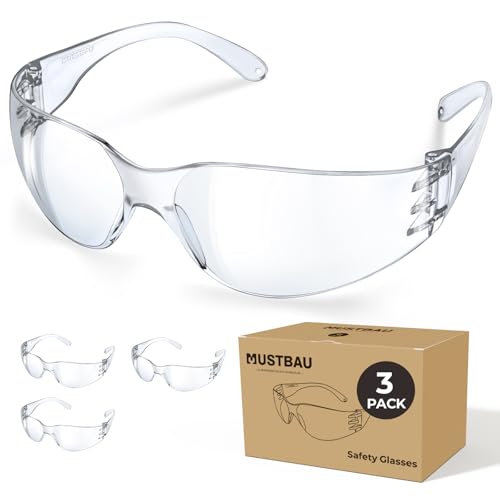

These wrap-around safety glasses with transparent lenses offer direct and peripheral visibility. The lenses are impact and scratch-resistant and offer UV protection. Available in boxes of 3 or 12.
Tools needed to sharpen a drill bit
There are a couple of options when sharpening a drill bit, explains McFadyen, “You can choose to sharpen a drill bit by hand or using an angle grinder or bench grinder.”
Sharpening by hand
Manually sharpening a drill bit only needs a few tools, as McFadyen shares, “When sharpening by hand, you will need a diamond hand file for most drill bits, particularly those made for masonry or metal drilling, which are typically made from harder materials.
He adds, “A fine file is also useful for softer drill bits or for minor finishing improvements.”
Using sharpening tools
“If you’re confident and have the tools, a bench or angle grinder can be used,” shares McFadyen. Start adds, “A bench grinder with a fine-grit wheel is the most common workshop tool for sharpening HSS twist bits.”
Start offers an alternative for DIYers: “For more consistent results - and a more accessible option for most DIYers - a drill-mounted sharpening jig or dedicated drill bit sharpener can help maintain the correct angles and keep both cutting edges symmetrical.”
PPE protection
Whether you're sharpening a drill by hand or using machinery, you need to wear protective gear, McFadyen says. “Eye protection is especially key, whilst gloves can also be worn when sharpening using power tools. A well-ventilated area and a dust mask are also recommended to avoid inhalation of dust.”
Sharpening a drill bit
There are two common methods for sharpening a drill: by hand or with a power tool. McFadyen points out, “There are key differences between the processes, but many of the techniques remain the same for both.”
Start adds, “Wood bits are usually easier to sharpen with a file or small stone, while masonry bits with carbide tips generally require a diamond wheel and are often replaced rather than sharpened in a home workshop.”
Get the right angle
McFadyen shares how to start the sharpening process: “Start by cleaning the drill bit and inspecting it to see exactly where it needs to be sharpened.” He adds, “When sharpening, take your time and frequently check the bit to ensure you are sharpening it at the correct angle.”

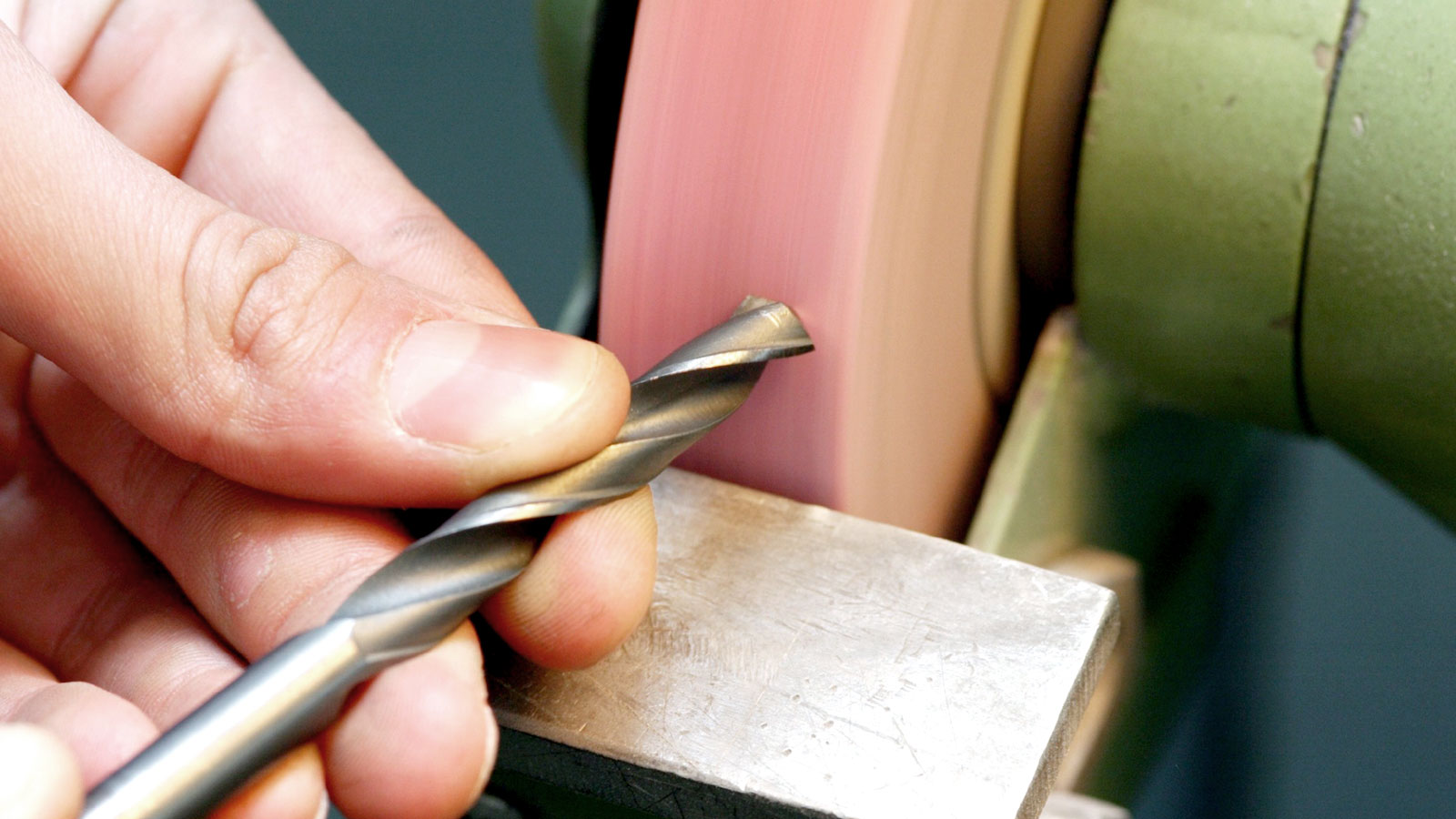

Ensuring you have the right angle is important. Start says, “For standard HSS twist bits used on metal, sharpening is typically done on a bench grinder by restoring the original 118° point angle while ensuring both cutting lips remain the same length.”
Start explains how, “The bit is lightly touched against the wheel and rotated to recreate the relief behind the cutting edge.” To help get the right angle, try an inexpensive tool like this Drill Bit Grinder Tool Manual from Amazon.
Alternatively, if you regularly need to sharpen drill bits, invest in a suitable machine, such as this Drill Doctor DD500X Twist Drill Bit Sharpener from Amazon.
Tips and techniques
If sharpening by hand, McFadyen says, “For the cutting edges, follow the curve of them with your file, moving it away from the edge in short controlled motions.” He continues, “Start with one edge, and then move onto the other once you are satisfied.”
Finally, “For the chisel, simply ensure that the tip is honed and clean. Do not aggressively sharpen the point, as this can shorten the life of the bit.”
If using a powered sharpener like a bench grinder, McFadyen shares the process: “The same principles apply for using powered grinders. Take things slowly and maintain a firm grip on the drill bit. Ensure the angle is correct and frequently check the bit every few seconds.”
He adds, “Importantly, when using a powered tool, you will need to control the heat generated from the grinding process. Keep a cup of water on hand and dip the bit into it every time you inspect it.”
Once sharpened, make sure to check your handiwork, shares McFadyen, “Before using the drill, visually inspect it to ensure that the edges are sharp and of equal length.” He adds, “Following this, gently test it in some soft scrap material and keep an eye out for signs that it is not drilling correctly, such as squealing, wandering or refusal to bite.”
FAQs
How often should I sharpen a drill bit?
Start says, “There's no fixed rule, but it's good practice to inspect your bits before use and after any tough job.” He continues, “Common signs that a bit needs sharpening include squealing during use, needing to apply excessive pressure, heat discolouration and ragged or imprecise holes.”
McFadyen shares, “Much will depend on how often you use your drill, what you use it for, and the quality of the drill bit itself.” He adds, “Drilling into wood, for example, will require less frequent sharpening than drilling into stainless steel or masonry.”
How much does a professional charge to sharpen a drill bit?
If you are not confident in sharpening a drill bit, you can take it to a professional. This is inexpensive for single drill bits, as McFadyen shares, “This can vary, but typically the price per drill bit will be under £5.”
And it can be a quick job as well, continues McFadyen, “Depending on availability and demand, professional sharpening can be done fairly quickly, and you will most likely be able to pick up your sharpened tools on the same day.” Search for local services to see what's available nearby.
How many times can a drill bit realistically be sharpened?
This can vary by type and use, but as a general rule, McFadyen says, “Drill bits can be sharpened frequently, but after a while it is advisable to replace rather than repair them.”
He adds, “The main restriction is the condition of the chisel head. If this becomes broken or damaged, or is filed too thin, the bit will need to be replaced.” Start explains what happens each time a bit is sharpened: “Each sharpening removes a small amount of material, so the limiting factor is typically the overall length rather than the condition of the steel itself.”
He adds that the quality also affects sharpening: “Cheaper bits often don’t respond as well to resharpening, which is another reason why investing in higher-quality drill bits can pay off over time.”
Try these drill bit sets to replace your old ones: DEWALT Titanium Nitride Coated, 21-Piece Titanium Pilot Point Drill Bit Set, fischer 561649 D-U Hex Universal Drill Bit Set and this DEWALT Masonry Drill Bit Set (all available from Amazon).
Drill bits come in many guises and can handle many DIY tasks, including drilling into walls and drilling into metal. If you are tackling any of these tasks or taking on a house renovation project, make sure your drill bits are sharp and fit for purpose.
