For a guide to repairing brickwork and render, read more here. In this article you will find information on structural issues including:

Much of the charm of old homes lies in their ‘wonky’ walls. The fact that very few surfaces are perfectly true, level or smooth only adds to the building’s historic fabric and character, providing a record of how it has adjusted to its environment over many years.

But leafing through a typical building survey and encountering the words ‘structural movement’ can be a sobering experience. Indeed, anything that hints at structural problems can be a deal-breaker, as panicking buyers scurry for the exit.

The fact is, all buildings move, and older properties with shallower foundations move more than most as they adjust to seasonal changes in ground conditions or new loadings — particularly in regions with clay subsoils. Traditionally, the odd crack developing wasn’t regarded as a big issue, being easily remedied with a spot of patching.

Periodic movement too might cause the odd door or window to stick in its frame, but a little judicious planning could soon put right such minor niggles. So, for homebuyers with a cool head, concerns about structural movement can sometimes be turned to an advantage by securing a bargain.

Find out more about renovating your home by visiting the London Homebuilding & Renovating Show at ExCeL London (22-24 September). Get two free tickets here.

Subsidence

Of course, not all movement can be breezily dismissed with a philosophical shrug. For example, subsidence can occur if the ground under part of the foundations shrinks, robbing the wall of support (commonly caused by leaking drains, or long periods of drought exacerbated by trees extracting moisture). The unsupported part of the wall immediately above can then suddenly drop, with this movement causing cracking.

This is very different from ‘settlement’, where the ground is slowly compressed over time by the loading placed upon it by the building. All buildings settle after construction or in response to major new structural change – such as extensions and loft conversions – as the ground adjusts to the new weight imposed upon it.

The word ‘subsidence’ was virtually unknown outside the arcane world of structural engineers and surveyors until cover was introduced into domestic insurance policies in 1971 following pressure from mortgage lenders. But it was the deluge of claims following the long, dry summers of 1975 and ’76 that propelled the ‘s’ word into the elite ranks of ‘Britain’s most worried about’ housing defects — joining regular contenders such as asbestos, ‘rising damp’ and dry rot.

Interestingly, most insurance claims for alleged subsidence turn out only to be cosmetic damage, and the majority are rejected as invalid because the cause lies elsewhere, such as differential movement cracks between lightweight conservatories and the main house. Of the valid claims, nearly three quarters are tree-related.

Regardless of the precise cause of movement, the big question to answer in all cases is whether the movement is historic or ‘progressive’, and likely to move more in future.

Subsidence Solutions

When it comes to cracking caused by subsidence you need to first eliminate likely causes such as nearby trees and leaking drains.

Conventional wisdom tells us that the solution to subsidence is underpinning, which involves excavation below the sunken wall and pumping in large volumes of concrete. But underpinning should be carried out as a last resort, particularly with older properties because the part that hasn’t been underpinned will continue to naturally move in tune with ground conditions, setting up stresses with the newly rock solid underpinned length of wall.

Underpinning also tends to leave something of a stigma that can worry future buyers and insurers.

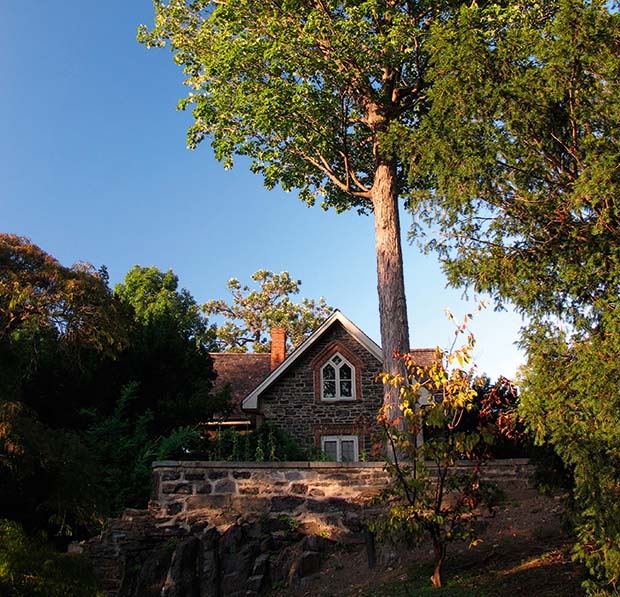

A tree outside an old home

Of all the valid subsidence claims, nearly three quarters are tree related

Trees and subsidence

Where subsidence is caused by trees there are two basic options:

  • remove the offending tree
  • manage it (pruning)

But if you simply cut down a large, thirsty tree, the ground may then react by swelling with moisture which is no longer being absorbed — causing ‘heave’. Be aware too that cutting down a tree protected by a Tree Preservation Order (TPO) or in a Conservation Area without consent can lead to prosecution. Tree management aims to reduce the amount of moisture uptake and how the drying out affects the soil.

One remedy is ‘pollarding’ (severe pruning), but not all trees will tolerate heavy crown reductions. For pruning to be effective, reductions of around 90 per cent are required, and some species respond to pruning with vigorous new growth which quickly restores the tree’s moisture uptake. This is why specialist advice should be sought before deciding whether to prune, pollard, or remove a tree.

Installing root barriers can provide an alternative method of tree management. This involves excavating a trench around 4m deep between the offending tree and the building and inserting large sheets made of rigid plastic to protect the whole building from the influence of the vegetation.

This method can have considerable cost advantages compared to underpinning, plus there’s the benefit of retaining trees. However, there can be practical limitations; barriers, for example, can’t be inserted so close to the tree that the main roots are damaged, risking instability. It’s also important that they are sufficiently robust and designed to accommodate any drainage pipes and underground services.

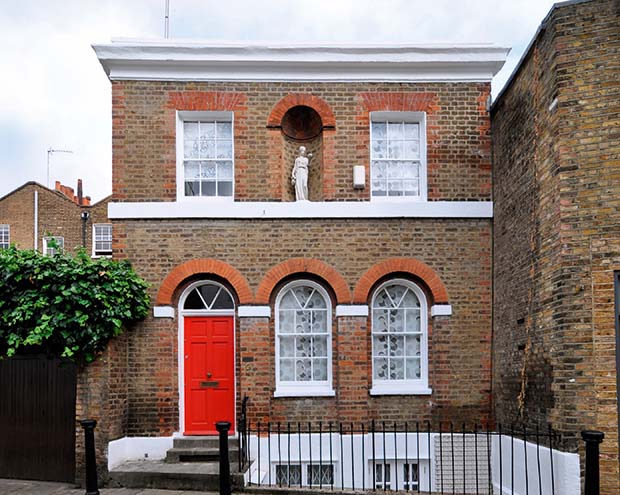

A period property and an adjoining damaged wall

Bulging or Leaning Walls

Identification

Solid walls bulging outwards or leaning with resulting cracking internally to plasterwork and sticking windows is not unusual and there are a number of possible causes. Leaning tends to be most visible at window and door reveals near roof level.

Implications of Bulging or Leaning Walls

Bowing or bulging in old solid walls is often due to ‘jerry building’, whereby the walls were never properly tied into the floor or roof structure in the first place, or were just cheaply built. This is sometimes evident in the side walls of Victorian houses and end terraces, for example.

Solid walls were sometimes built with small embedded ‘bonding timbers’ to tie them together. These timbers can, over time, be prone to rotting and expanding, causing the wall to bulge.

Walls can also bow outwards because they are overloaded, having been built too thin or as a result of botched structural alterations.The most common cause of leaning is from ‘roof spread’ where the rafters push the tops of the main walls outwards if they’re not restrained by collars or ceiling joists. This may have happened because the joists were poorly nailed to the rafters or have rotted.

How to Repair Bulging or Leaning Walls

Before the affected wall section(s) can be repaired – or indeed cut out and rebuilt – the cause of the movement must first be identified and eliminated. Costs are in the table at the bottom of the page.

  • Where walls have bulged due to excessive loadings, some form of additional support will need to be provided and a structural engineer consulted. A thin, 115mm single-leaf wall, for example, may need to be entirely rebuilt, or the loadings could be diverted or relieved by installing a steel beam.
  • Walls suffering from a lack of restraint can be secured to the upper floor joists or roof structure by building in metal ties — a modern variation on traditional S or X iron tie bars (below) that can be seen adorning the walls of many an old cottage.
  • Sometimes a wall will have ‘come loose’ because the floor joist ends that used to hold it in place have rotted through. The rotten timbers must be cut out, the cause of dampness remedied, and the ventilation improved, before defective lengths can be replaced with new pre-treated timber protected by a damp-proof course.
  • Similarly, where the roof has pushed out the walls causing them to spread, the solution is to provide additional restraint such as new ceiling joists or collars, and, in serious cases, to rebuild the upper wall.
A house with x iron tie bars

X iron tie bars securing the walls of some old cottages

Cracks in Main Walls

Identification

Potentially problematic external cracks in masonry, which could allow damp to penetrate, should be addressed. There are two main kinds of vertical cracking in masonry: those that run straight down through the bricks or stones, and stepped cracks that follow the mortar joints in a zigzag pattern (either tapered or uniform in width). Less commonly, cracks may also run horizontally. Internally, cracks to plasterwork and sticking doors and windows are signs that something is not right, too.

Causes & Implications of Cracks in Walls

Before carrying out repairs, the first step is to identify the cause of the movement. Diagnosing the cause can be difficult, so insurance companies often want to monitor and measure the rate of cracking for at least 12 months in order to diagnose the risk of future movement. This typically involves fitting ‘tell tales’ across the crack. Tell tales are best described as graduated glass microscope slides, screwed in place or secured with epoxy resin adhesive.

Thermal movement:
One of the most common causes of cracking is thermal movement due to adjacent materials expanding and contracting at different rates. This is usually found at the juncture between different materials, such as where old solid brick walls meet blockwork walls. But large stretches of wall made from a single material can also develop thin, vertical thermal movement cracks (hence the need to incorporate vertical movement joints every few metres when building).

Certain materials are especially prone to this form of cracking, such as white calcium silicate bricks (commonly used in the 1960s and ’70s) and reconstituted stone blocks.

Differential movement:
Differential movement is commonly found where new extensions with deeper foundations abut an old house, or when bay windows and porches were built with shallower footings than the main property. Different foundation depths and loadings mean that these will move at a different rate, setting up stresses which in turn lead to cracks.

Water and Rust:
If water penetrates a wall and then freezes, it can, over time, cause metal components to rust and expand. If rainwater gets into a crack and there’s an old steel lintel in the wall which begins to rust, for example, the expansion can force the surrounding brickwork to move.

Similarly, iron cramps embedded within traditional stonework can rust where the protective lead coating has cracked. The rust expansion will ultimately crack the stone it was meant to restrain.

Rust too can be the cause of cavity wall tie failure where ungalvanised ties have corroded and expanded. (This is more common in exposed walls in coastal areas.) The expanded ties can jack up the wall, resulting in horizontal cracks at periodic mortar joints corresponding to the tie positions. This is usually more evident to upper walls.

Doors and Windows:
It is very common to find stepped cracks above openings in cavity walls where the doors or windows have been replaced, too. This is fairly common in properties built from the 1940s to ’70s without lintels in the outer leaf; the original steel windows were often designed to support the wall loadings. A lack of support during replacement work can cause the wall to drop slightly.

Shallow foundations:
Subsidence is more likely to occur in older properties with shallow foundations on clay subsoil, on slopes, and with trees nearby. Alarm bells should start to ring where cracks extend below damp-proof course level down to the foundations.

Other clues are where tapered diagonal cracks increase in width as they go up the building (typically widening in summer and closing during winter), and where you can see ‘mirror image’ cracking visible both inside and out.

Trees:
‘Heave’ is the opposite of subsidence: the ground swells up rather than sinks. It can often occur on clay subsoils typically after the removal of a large nearby tree. The water that would have been absorbed by the roots swamps the ground, and this can then freeze and expand further, pushing the shallow foundations upwards.

Bad Building Work:
Finally, we mustn’t overlook the power of botching. Incompetent builders or faulty materials can cause structural defects — steel beams installed with inadequate support at either end being a prime example.

How to Repair Cracks in Walls

In any case, both thermal and differential movement need to be accommodated, and this can be done by forming an expansion joint with a flexible mastic sealant. It’s important to note too that you must notify your local Building Control department in advance of all structural works. Costs are in the table at the bottom of the page.

  • Where the cause of the cracking has been stabilised, stepped cracks can be made good simply by repointing with a suitable mortar or using a clear flexible mastic.
  • With vertical cracks, on the other hand, the damaged bricks or stone will normally need to be cut out and replaced.
  • Another remedial technique for areas of substantial cracking, is to drill a series of holes along the crack and inject them with thixotropic resin grout. The face of the brick can then be repaired with colour-matched mortar which should be undetectable.
  • Alternatively, engineers sometimes recommend that cracks are stitched up using stainless Helifix small diameter rods cut into the masonry and bedded in epoxy mortar.
  • To prevent unsightly cracks reforming in rendered surfaces, a fresh coat of render can be carried across the hidden joint on stainless steel lathing; this gives flexibility to accommodate future movement.
  • Original lintels that were too thin, missing or have become overloaded will need cutting out and replacing.
  • Rusted metal components can be cut out and replaced too with more durable new components, such as stainless steel cramps.
  • Where there’s horizontal cracking along mortar beds, specialist firms can carry out cavity wall tie replacement.
  • Movement due to poorly executed past structural alterations may require a structural engineer to design a new method of additional strengthening.

Cost of Associated Works

Works Labour & Material (incl VAT)
Repairing Cracking
Repair vertical cracks in brickwork to prevent further cracking
Reinforcing rods to extend 500mm each side of crack. Rake out mortar joints and insert 6mm helical reinforcing rods, bonded with masonry grout; repoint to match existing
£400/m length
Repair cracks in brickwork (one brick thick) including cutting out bricks and replacing with new, and pointing to match existing £87/m length
Cut out defective facing bricks and replace with matching new bricks, including pointing £17 (single brick)
Typical cost of pointing up a crack or replacing a few bricks: about £300

Lintels and Beams

Renew defective 1,200mm-long timber lintel, remove old lintel and one course of bricks, fix new steel lintel and brick courses and make good £358 (in 265mm-wide cavity wall)
Fix new steel lintel 2,100mm long in prepared opening and make good £185 (in 265mm-wide cavity wall)
Remove defective brick arch, clean off bricks, prepare and rebuild arch, and point in mortar £163 (up to 1m long and half brick wide)
Cavity wall tie replacement (total cost)
Removal of say 200 defective wall ties, replacement and additioal ties, and allowing for scaffolding. (Add for repointing brickwork or re-rendering and making good disturbed plaster finishes)
£4,500
Underpinning
First excavation of trenches down to base of existing foundations, say 1m deep £112/m²
Support sides of trench £35/m length
Extra for breaking up 150mm-thick concrete bed £20/m²
Second excavation below level of existing foundations (say 1m deep) £109/m³
Support to sides of trench (second excavation) £37/m length
Cutting away existing foundations (projecting concrete 300mm wide x 300mm deep) £57/m length
Concrete underpinning: plain concrete (1:3:6 with 20mm aggregate) filled into form work in foundation trenches, 150–300mm thick £335/m³
Typical ballpark cost for underpinning an average house: £10,000 to £15,000
