As with the electrician, it is quite likely that the plumbing and central heating engineer will work on a supply-and-fix basis, either wholly or in part. Most self-builders will not want to be involved in the purchase of minor items, but may wish to provide major items such as the boiler and underfloor heating for the plumbers to fit on a labour-only basis.

The trade is divided into two stages, first fix (carcassing) and second fix, and payment is often made as each stage is completed.

The first arrival of the plumber on site may be to fix the standpipe for the building water supply. Part of this may be used for the eventual outside tap, but the require ment for non-return and shut-off valves and the need to box in the standpipe itself means that around an extra £100 may have to be allocated.

The next time the plumber comes on site will be just before the roof is tiled in order to set up the soil vent pipes (SVPs). If they are to be responsible for the lead flashing instead of the roofer, they will then stay to attend to that. If they are fitting the guttering and downpipes then they may well fix the guttering from the scaffold before it comes down but leave the downpipes until later.

The plumber will work closely with the electrician in the wiring up of the boiler and control systems, and their testing and firing.

Estimate the cost of your self build house with the Build Cost Calculator

Safety First

Self-builders should only use qualified and registered plumbers who are certified by either ‘Gas Safe’, OFTEC (Oil Firing Technical Association Ltd, oftec.org), NAPIT Certification Ltd (napit.org.uk), or BESCA (Building Engineering Services Competence Accreditation Ltd, besca.org.uk). In practice, most competent plumbers are registered with most or all of these bodies.

The Costs

Heating
Underfloor central heating system (1) £3,997.00
VAT @ 20% £799.40
3 white-painted steel towel rails @ £118 each £354.00
VAT @ 20% £70.80
Manifold outlet and timer for towel rails £76.00
VAT @ 20% £15.20
Twin wall pressurised hot water cylinder £699.00
VAT @ 20% £139.80
Oil-fired condensing boiler £1,260.00
VAT @ 20% £252.00
Horizontal flue kit £130.00
VAT @ 20% £26.00
1,235L bunded oil tank including fittings £735.00
VAT @ 20% £147.00
Apollo with tank readout £75.00
VAT @ 20% £15.00
Tiger loop £78.00
VAT @ 20% £15.60
Tank base: 1 ton bag all-in ballast £34.00
VAT @ 20% £6.80
10 bags ordinary Portland cement @ £2.90 each £29.00
VAT @ 20% £5.80
Labourer 2 days incl backfilling supply pipe trench £200.00
25m roll plastic-coated oil feed pipe £60.75
VAT @ 20% £12.15
35 sheets 100mm flooring insulation for first floor (ground floor costed in Part 3) @ £23 per sheet £805.00
VAT @ 20% £161.00
2 rolls polythene membrane @ £50 each £100.00
VAT @ 20% £20.00
2 rolls sealing tape @ £6.77 each £13.54
VAT @ 20% £2.71
Labour – 18 man days @ £176 per day £3,168.00
Subtotal for heating £13,503.55

Heating: (1)The figures assume a complete underfloor heating system to ground and first floor (supplied by Robbens Underfloor Heating Systems Ltd, underfloorheating.co.uk), to include: electronic controllers; loop actuators; room thermostats; remote sensor thermostats; setback control thermostats; manifolds, highperformance multi-layer pipe; and fixings. This costing assumes that the choice of a solid beam and block first floor has been made. If the alternatives of either a timber joist or an engineered timber floor were taken, then the price for the underfloor heating system would rise by £320 due to the need for heat spreader plates and pipe fixings. These costings also assume a Trianco oil-fired condensing boiler. The boiler is a system boiler providing mains pressure hot water to the central heating and the domestic hot water, without the need for expansion tanks in the loft.

First Fix Plumbing
26 x 3m x 15mm copper pipe @ £1.58/m £123.24
VAT @ 20% £24.65
20 x 15mm copper tees @ 30p each £6.00
VAT @ 20% £1.20
120 x 15mm copper elbows @ 15p each £18.00
VAT @ 20% £3.60
26 x 15mm copper couplings @ 9p each(2) £2.34
VAT @ 20% £0.47
94 x 15mm pipe clips @ 9p each £8.46
VAT @ 20% £1.69
18 x 15mm isolating valves @ 92p each £16.56
VAT @ 20% £3.31
28 x 3m x 22mm copper tube @ £3.02/m £253.68
VAT @ 20% £50.74
8 x 22mm copper tees @ 96p each £7.68
VAT @ 20% £1.54
30 x 22mm copper elbows @ 43p each £12.90
VAT @ 20% £2.58
10 x 22mm copper couplings @ 23p each £2.30
VAT @ 20% £0.46
101 x 22mm pipe clips @ 11p each £11.11
VAT @ 20% £2.22
8 x 22mm isolating valves @ £1.91 each £15.28
VAT @ 20% £3.06
2 washing machine hot & cold taps @ £1.23 each £2.46
VAT @ 20% £0.49
1 dish washer cold tap £1.23
VAT @ 20% £0.25
2 washing machine/dish washer open waste traps @ £7.92 each £15.84
VAT @ 20% £3.17
External cold water tap with hose union and 15mm 3/4 coupling £12.19
VAT @ 20% £2.44
8 x 3m 11/4 waste pipes @ £1.99 each £15.92
VAT @ 20% £3.18
16 x 11/4 waste elbows @ 59p each £9.44
VAT @ 20% £1.89
4 x 11/4 waste couplings @ 59p each £2.36
VAT @ 20% £0.47
36 x 11/4 waste clips @ 17p each £6.12
VAT @ 20% £1.22
25 x 3m 11/2 waste pipes @ £2.42 each £60.50
VAT @ 20% £12.10
7 x 11/2 waste tee 11/4 branches @ £1.18 each £8.26
VAT @ 20% £1.65
35 x 11/2 waste elbows @ 59p each £20.65
VAT @ 20% £4.13
11 x 11/2 waste couplings @ 59p each £6.49
VAT @ 20% £1.30
75 x 11/2 waste clips @ 17p each £12.75
VAT @ 20% £2.55
7 x 3m soil vent pipes @ £16.94 each £118.58
VAT @ 20% £23.72
4 soil vent pipe branches @ £14.24 each £59.96
VAT @ 20% £11.99
8 soil vent pipe bends @ £9.55 each £76.40
VAT @ 20% £15.28
19 soil vent pipe clips @ £1.64 each £31.16
VAT @ 20% £6.23
1 soil vent pipe roof cowl £26.47
VAT @ 20% £5.29
Labour – 16 man days @ £176 £2,816.00
Subtotal £3,973.20

First Fix Plumbing: (2)These costs assume the use of copper piping, which, in truth, most plumbers are more familiar with. The use of plastic plumbing would not necessarily save a great deal, although a plumber who was experienced in using it might be slightly quicker.

Second Fix Plumbing & Sanitaryware
4 white WC pans @ £43.20 each(3) £172.80
VAT @ 20% £34.56
4 white cisterns @ £45.52 each £182.08
VAT @ 20% £36.42
4 toilet seats @ £13.86 each £55.44
VAT @ 20% £11.09
4 straight multiquick connectors @ £3.74 each £14.96
VAT @ 20% £2.99
5 white basins @ £33.36 each £166.80
VAT @ 20% £33.36
5 white basin pedestals @ £25.91 each £129.55
VAT @ 20% £25.91
5 pairs basin taps @ £13.77 each £68.85
VAT @ 20% £13.77
5 basin wastes @ £2.70 each £13.50
VAT @ 20% £2.70
5 basin waste traps @ £3.03 each £15.15
VAT @ 20% £3.03
Standard white bath £100.00
VAT @ 20% £20.00
Bath panel £14.32
VAT @ 20% £2.86
Bath taps £19.49
VAT @ 20% £3.90
Bath waste £2.83
VAT @ 20% £0.57
Bath waste trap £3.09
VAT @ 20% £0.62
3 x 900 x 900mm shower trays @ £100.26 each £300.78
VAT @ 20% £60.16
3 pivot shower doors @ £156.10 each £468.30
VAT @ 20% £93.66
3 shower wastes and combi traps @ £6.90 each £20.70
VAT @ 20% £4.14
3 shower mixer units @ £118.38 each £355.14
VAT @ 20% £71.03
Labour – 7 man days @ £176 £1,232.00
Subtotal £3,756.55

Second Fix Plumbing & Sanitaryware: (3)It’s possible to spend much more than these figures on sanitaryware, but it’s as well to remember that flair and imagination can add more value than simply buying expensive fittings. Buying very much cheaper, on the other hand, could detract from the value.

Guttering & Downpipes
20 x 3m lengths PVCu guttering @ £11.31 each £226.20
VAT @ 20% £45.24
115 gutter brackets @ £1.30 each £149.50
VAT @ 20% £29.90
14 union brackets @ £2.45 each £34.30
VAT @ 20% £6.86
7 gutter running outlets @ £4.12 each £28.84
VAT @ 20% £5.77
6 gutter stop ends @ £1.65 each £9.90
VAT @ 20% £1.98
4 x 90° gutter bends @ £4.10 each £16.40
VAT @ 20% £3.28
5 x 6m rainwater downpipes @ £16.08 each £80.40
VAT @ 20% £16.08
21 RWP brackets @ £1.86 each £39.06
VAT @ 20% £7.81
10 RWP bends @ £2.35 each £23.35
VAT @ 20% £4.67
1 box 50 x 5mm screws £6.99
VAT @ 20% £1.40
1 pack Rawl plugs £4.65
VAT @ 20% £0.93
1 box 25 x 4mm screws £6.34
VAT @ 20% £1.27
Labour – 5 man days @ £176 £880.00
Subtotal £1,631.12

Guttering & Downpipes: This usually falls within the remit of the plumber but in some cases will be taken on by another of the trades such as the carpenter or the roofer. It’s always best to fix the gutting from the scaffolding before it comes down as it’s much easier to set up the right falls from that vantage point.

Plumbing and central heating total

£22,864.42

(of which recoverable VAT) £2,428.09

How to reduce these costs:

  • If a conventional radiator system with 16 basic radiators with TRVs (thermostatic radiator valves) was employed instead of under floor heating, then the savings could amount to £2,096.19.
  • The first article in this series assumed the supply of gas onto the site and if that were the case then that would probably be most people’s first choice of fuel, and there would also be savings. A gas-fired condensing system boiler from Worcester Bosch (worcester-bosch.co.uk) would cost £722.75 — when you add up the cost of the oil-fired boiler together with the tank and all its accoutrements, that represents a saving of £1,748.97. But you would have to pay for the connection and supply of gas to site and that would reduce the saving to £498.97.
  • You could fit the underfloor heating pipes to the floor yourself. It’s a long job but, given the plans of where and how things go, it’s not technically difficult. And it could save up to ten man days at £1,760.

Our Benchmark House

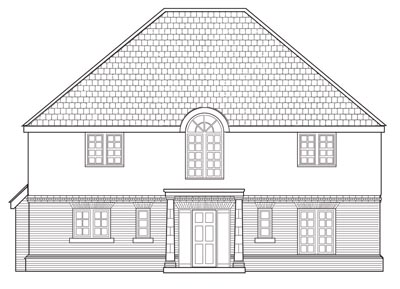

The floorplan for the house costed within this series measures up at 227m² — much larger than the average family home. Four bedrooms on the smaller first floor share three bathrooms. Downstairs, the living spaces flow easily onto one another, with an open plan family kitchen being the hub of home life.

All prices correct at time of writing, November 2011

Special thanks to Estimators Limited (estimators-online.com 0161 286 8601) and Design & Materials Limited (designandmaterials.uk.com 0845 404 0400) for their help in the preparation of this series of articles.
