If the current layout of your home isn’t working, your first instinct may be to add more space by extending. This may well be an option, but it’s not the whole story.

Your first thought should be whether you can make more of the space you already have. Traditional properties tend to have a warren of small rooms. Previous additions such as porches and conservatories only add to the problem, leaving interiors with no light and turning existing rooms into corridors.

Remodelling can solve these problems and create the space you want, without having to extend.

Find a tradesperson

Where to Start

Floorplans

  • Get a set of floorplans drawn up so you can take a fresh look at the layout of your home.
  • Ideally this will be a full measured survey, showing exact dimensions and angles. A surveyor (rics.org.uk) will charge £600-£900 plus VAT to draw floorplans, elevations and key sections.
  • As a starting point, you could draw up plans yourself on squared paper. These are adequate if you are only making minor changes.

Orientation

  • Next, check the orientation so you can work out the passage of the sun during the day and which rooms get light when.
  • Make a note of which side of the property is quietest and most private, and mark the position of the gas and electric meters (if in the house), the soil pipes and any inspection chambers outside.
  • Note any changes in floor level or ceiling height.

Explore Your Options

Using your plans you can then explore all options to create the space you need. You can add or remove walls and doorways, and convert space such as an attached or integral garage, loft or cellar.

Kitchen Breakfast Room

High on most people’s wish-list when remodelling is a family kitchen with informal dining area and a separate utility room and cloakroom. Typical remodel options include combining the existing kitchen with the dining room, and perhaps the living room too.

Another common option is to convert an attached or integral garage and combine this space. If necessary, extra space can be added by extending.

The fewer walls you remove, the lower the cost, so don’t make unnecessary changes. Adding new walls, to form a utility room for instance, is less expensive than removing walls.

Locating your kitchen sink and utility room to make use of existing soil pipes will be the most cost-effective option but there is usually a plumbing solution for any situation. Gas and electric meters can be relocated, but this will add £300-£400 per meter to costs.

Master Bedroom

The second most popular option is to create a larger master bedroom with an en-suite bathroom and perhaps a dressing area. A typical solution is to knock a doorway into an adjacent smaller bedroom – often the box room – and to add bathroom facilities here, closing up the original doorway.

Choosing a location for the en-suite with access to a soil stack is the most cost-effective option, but there is always a plumbing solution.

What to Consider

Structural or Non-Structural Walls

Non-structural walls can typically be removed without any compensating measures being necessary, except for making good the walls, ceiling and floor.

If you’re removing loadbearing structural walls, you will need to insert a beam to support what is above it instead. This is usually steel, and the structural engineer will calculate the depth and width of the steel beam needed to hold the weight. They will also calculate the positions of any piers (an upright to support the beam, like a goalpost) and associated works.

The larger the span of space the steel beam is required to cover, the bigger the depth of the beam. This can sometimes mean it protrudes into the room below. This is usually referred to as the downstand.

At this point, you could consult with your structural engineer to discuss ways to hide the steel beam — preferably, in the floor structure above. This will not only give you valuable inches in terms of head height, it will also look better.

Changes in Floor Level

Watch out for changes in floor or ceiling level when joining rooms together. Small changes can be overcome with a single step, or by adjusting floor or ceiling levels to match. Larger differences will require steps and this can take up a valuable space.

Relationship Between Spaces

When remodelling, respect the key relationships between spaces, such as between the kitchen and dining area. Make sure all of the main rooms can be accessed directly from a centrally located hallway and landing.

Lighting and Heating

Once you have created an open plan space, you will need to reconfigure the wiring and lighting, and update the heating and controls. Treat each area as a separate room or ‘zone’ with its own focal point, access and circulation routes, and independently switched lighting circuits, albeit controlled from grouped switch panels in key locations.

Internal Spaces Costs

For a ‘typical’ opening up project that involves removing a 5m-wide loadbearing wall, builders would typically quote between £1,000 and £2,000 (plus VAT, where applicable).

This would cover:

  • temporary support of the structure
  • demolition of walls
  • building of required padstones and supports for the new beam
  • insertion of the beam
  • plasterboarding out
  • making good at wall, floor and ceiling junctions.

Case Study: “I Knocked Through to Create the Ultimate Kitchen Diner”

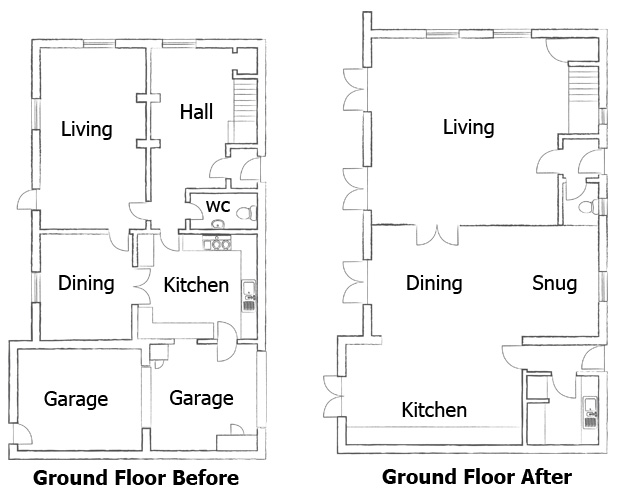

Jennifer Turner has completely opened up the ground floor of her remodelled 1960s home by reconfiguring the layout. “The builders knocked through a supporting wall between the old kitchen and dining room, incorporating a steel support, to create a large space,” says Jennifer. Her stunning new kitchen diner incorporates an extension to replace the former garage. The builders also removed the wall between the hallway and living room.

Case Study: “We Opened Up Our Victorian Terrace”


Lucy and David Houlton took on a four storey Victorian townhouse that had been converted into eight cramped bedsits. They reinstated it back into one, with a light and airy, open plan layout.

“We realised we could turn it back into a home by knocking through some of the internal walls to create larger living areas and decent-sized bedrooms,” explains Lucy.

Key to the remodel was the removal of walls on the ground floor to turn two bedsits and a kitchen into a large L-shaped open plan space. The highlight is the sumptuous master bedroom on the first floor, once two bedsits, which now stretches the length of the property.
