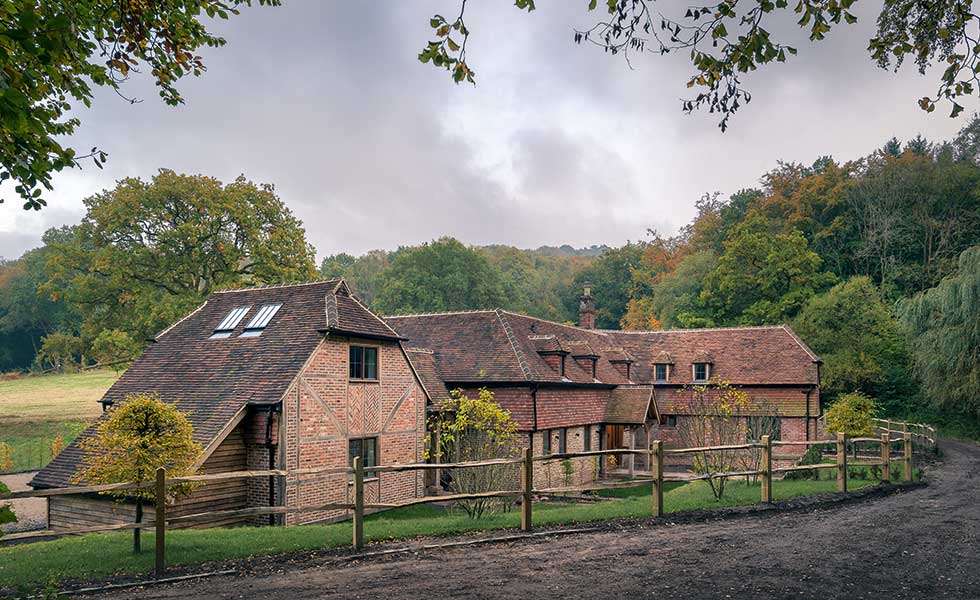

It can be an incredible rewarding experience to take on the renovation of an old home. When it comes to older timber frame homes, like this beautifully renovated 16th-century cottage (pictured above), the frame itself requires its own suite of repairs and remedial actions.
For timber frame homes which have not been clad with brick, or rendered entirely in lime, the exposed timber has likely taken some battering from the elements over the centuries — and in recent years, may have been covered by inappropriate modern materials. These timbers may, therefore, be in need of some repair.

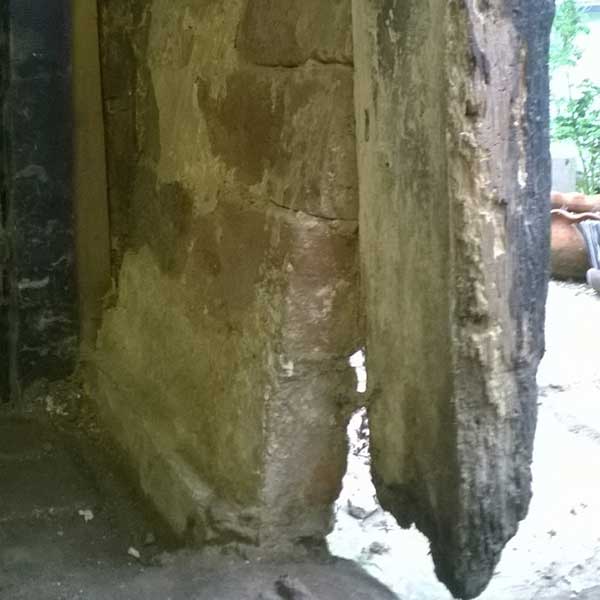

Rot and structural defects are the source of most problems. However, both are often interlinked; rot can render timber unfit for purpose, so too can beetle or woodworm infestation, which thrive in damp wood.
Rot can also just impact the exterior weathering face, with the timber behind as solid as a rock. So, identifying the cause of the problem is essential before treating the effects and making cosmetic repairs.
Moisture can become trapped within timber in different ways:
- ‘Shakes’ on the exterior – splits which can develop along the grain as timber dries out – do not typically compromise the structural integrity of the frame, but can lead to water ingress
- Where a timber was originally installed with the grain running at an angle, rain can expose the grain here, causing ridges to form, and rain can become trapped within the undulating surface
- Soil levels or interior floors can also build up, over the centuries, over the sole plate (the timber nearest the ground — more on this later), causing it to become damp
Another cause of decay over the last half century or so, has been the use of modern, synthetic materials in ‘repair work’.
Wood allows moisture and humidity to pass freely through — it’s a breathable material. By contrast, materials such as cement render and synthetic paints are impermeable and don’t allow the timber to breathe.
If you (or your building surveyor) have identified potential issues, then sourcing a skilled carpenter, master craftsman or period building specialist with expertise and previous experience in this area, is a priority.
Choosing the right company is key to the building’s future — as inappropriate repairs, like the use of cement mortars, will only serve to exacerbate existing problems and hasten rot.
First, the builder must analyse how the house has been put together. No two timber frame homes are the same; not only did timber frame design evolve over the centuries, but many buildings have been added to and extended over the years, sometimes with key structural timbers cut without adequate support given to the frame, so it has to be established how the weight is distributed.
A key part of this initial process is identifying whether repairs are required to return the frame back to a structurally sound condition. It is only once the frame is structurally sound that major jobs like replacing a sole plate can be tackled.
Repairing Sole Plates
Sole plates – also known as cill plates – refer to the timber at the base of the frame, which typically rests on a plinth wall. The vertical timbers (the posts and the studs) are tenoned into a sole plate, so it plays a vital role in supporting the frame.
They are usually the first elements to require repair as they’re closest to the ground. Another issue can be that a tradesperson may have previously covered the sole plates in cement in an attempt to prevent decay. But, in five to 10 years time this impermeable layer will have caused even more destruction.
In some instances, only sections may need cutting out; in others, an entire sole plate could be in need of replacement. This task typically involves propping up the frame and removing a couple of courses of the brick plinth to allow a new sole plate (typically in air-dried timber) to be inserted on a bed of lime mortar.
Repairing the Exterior of the Frame

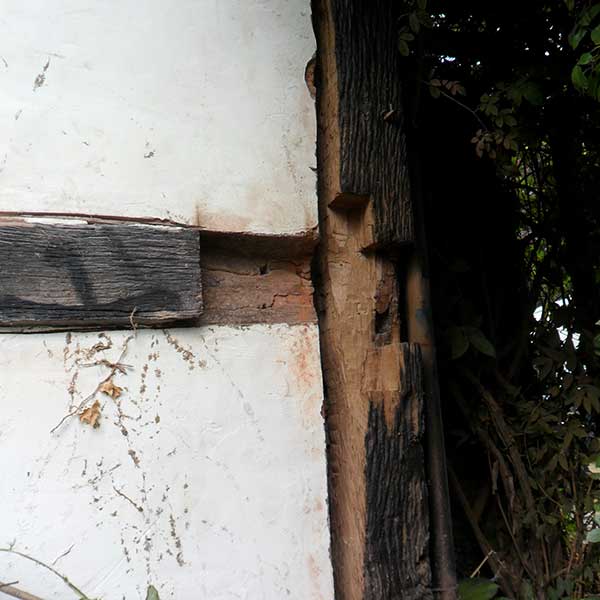

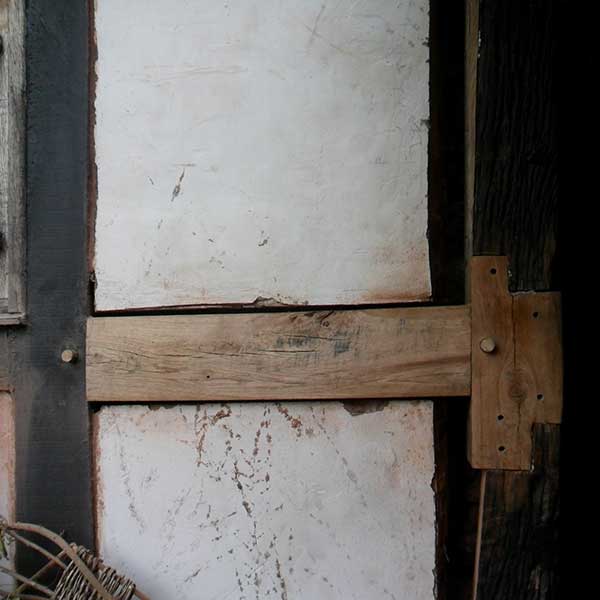

Another area of the frame which can require attention is the exterior of the frame. Rotten sections can be removed and sensitively repaired with new air-dried timber – as with all repairs, the same species of timber should be used – spliced in by means of a scarf joint. Even new mortise and tenons joints can be crafted where structural repairs are a necessity.
New timber can also be spliced in to fill large shakes, or these can be filled with lime mortar and a limewash applied as a finish (any previous ‘repairs’ made with cement mortar should be removed). Heritage House offer a popular caulking repair kit too, consisting of oakum – a breathable hemp fibre, soaked in Stockholm tar – as another option.
Repairing Coated Timber
It’s with some irony that the ‘black and white’ timber frame houses which we’ve now come to recognise as part of the vernacular of counties such as Herefordshire, Worcestershire and Shropshire, are not as ‘historic’ as we may think. Timber frames were not originally painted, it was later occupants of these historic buildings which coated the timbers in black.
The use of black plastic-based paints is, however, bad news for timber. Worse still, some frames (often agricultural buildings) were covered in bitumen; once believed to be a good means of waterproofing. But this impermeable layer can instead trap moisture and again lead to rot.
Aside from allowing the coatings to weather off, there are a couple of approaches which can be taken:
- The first (but perhaps not favourable) is via the application of chemicals which cause layers of paint to peel off
- Mechanical removal (airwashing or sandblasting) is the other main option. Sandblasting has a reputation for being too abrasive, but a specialist can turn the pressure right down to simply lift the paint without impacting on the grain
Infill panels can impact on the frame, too. Where wattle and daub panels failed, they were often replaced with heavier materials such as brick. However, the added weight of brick may cause the panel to bulge and cause the frame to rotate outwards where the frame was not strengthened to support it.
This can be all the worse when an inflexible material, such as cement mortar, is used rather than flexible and breathable lime mortar. It will inevitably crack and the only solution is to start again.
If replacing like-for-like, or repairing original wattle and daub, the finish applied is key: Use a breathable limewash outside. Internally, clay paints are recommended.
With an old timber frame home it’s important to have a one-year, five-year and 25-year schedule of works. To protect against damage, the best thing you can do is render over the entire exterior with lime mortar. This prevents leaks and degenerative weathering to the timber. However, few who buy a timber frame home are keen to cover up what attracted them to it, but it is a particularly good idea for elevations exposed to prevailing winds and driving rain.
The Society for the Protection of Ancient Buildings (SPAB) offers a good technical helpline if in doubt of how you should proceed.
Thanks to: Edward Parry, a Ludlow based builder specialising in restoration work; Pete Ward of period buildings specialist Heritage House; and Barry Mulford of B Mulford Historic Carpentry, for their tips and advice in this article.
