Underfloor Heating Solutions

An underfloor heating solution for every kind of project is offered by JG Speedfit, be it retrofit, new build, or even single rooms and extensions.

Screed Floor Underfloor Heating

Screed underfloor heating solutions are ideal for ground floor in new builds and extensions. JG Speedfit offers 3 installation options for screed solutions:

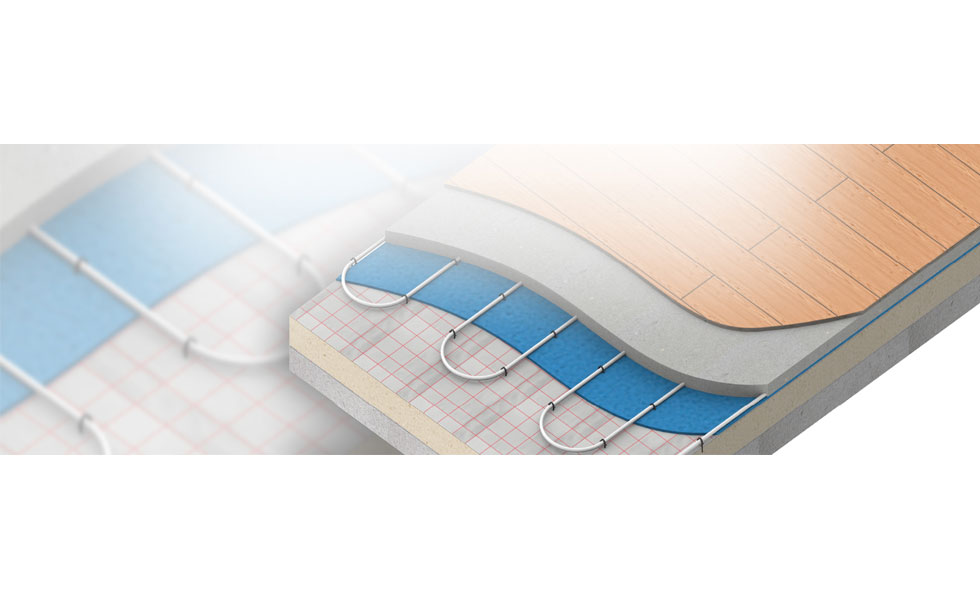

  • Staple System: a cost-effective underfloor heating solution with high heat output and response time. Using the screed as a heat diffuser, 15mm JG Layflat® pipe is secured with staples to rigid insulation placed over the concrete subfloor.
  • Mounting Rail: an ideal solution when the insulation is too thin for staples. Using the screed as a heat diffuser, 15mm JG Layflat® pipe is secured to ‘Clip Rails’ on top of rigid insulation sheets, which are placed over the concrete subfloor.
  • Floor Panel: a simple grid layout that makes it quick and easy to lay 15mm JG Layflat® pipe. Also ensuring precise pipe layout to minimise pipe-bending radius.

http://www.johnguest.com/speedfit/underfloor-heating/underfloor-heating-explained/system-selector/screededsystems/

Timber Floor Underfloor Heating

This is the optimum solution where timber floors are present on ground or upper floors.

  • Spreader Plates from above: designed for use with timber suspended or floating floors. 15mm JG Layflat® pipe is installed into single or double grooved aluminium spreader plates that transmits heat evenly across the finished floor surface. For existing floor structures install between battens and for new floors fix between existing joists. If the floor can be raised, floors can also be counter-battened to make installation even easier.
    • Spreader Plates from below: designed for use with timber pre-engineered joists, as modern joists rely on the floor above being bonded and screwed to the joist’s top surface. 15mm JG Layflat® pipe is fixed to single grooved aluminium spreader plates that transmits heat evenly across the finished floor surface. As plates are fitted from underneath the floor there is no height build up.

http://www.johnguest.com/speedfit/underfloor-heating/underfloor-heating-explained/system-selector/dry-systems/



Existing Floor Underfloor Heating

Underfloor Heating Solutions for retrofit projects.

  • Underfit®: designed for use with timber suspended or floating floors. 15mm JG Layflat® pipe is installed into a grooved foil-faced panel over existing floor structures, either between battens or under the floor between existing joists.
  • Overfit®: low profile system featuring a lightweight insulated panel with high compressive strength intended for use with lightweight floor coverings such as laminate, engineered wood and carpet. Due to its ease of handling and cutting, it is also suitable for larger areas and multiple room installations. The installation uses 15mm JG Layflat® pipe and 150mm centres for a highly responsive system.

http://www.johnguest.com/speedfit/underfloor-heating/underfloor-heating-explained/system-selector/dry-systems/underfit-and-overfit/

For more information visit the company site HERE.

Trusted Plumbing & Heating Solutions

JG Speedfit, a British manufacturer that invented the push-fit fittings used in industries such as Plumbing & Heating, Compressed Air & Pneumatics, Automotive, Beverage Dispense, and Telecommunications, manufactures all of its fittings and pipes entirely in the UK.

Push-fit Plumbing Solutions:

The JG Speedfit range offers a wide variety of push-fit Plumbing and Heating solutions that make installations quick, easy and reliable. Trusted plumbing installers depend upon Speedfit Technology for making leak proof pipe connections in tight spaces. The ease to install reliable pipework using push-fit fittings without the use of additional tools, lies in the fact that our engineers have created a product that allows the installer to focus upon the more strategic tasks.

Plumbing installers trust JG Speedfit because all fittings are compatible with plastic as well as copper pipe, the twist and lock feature gives a leak proof seal, and fittings can be installed & demounted without additional tools within seconds.

Speedfit Underfloor Heating Solutions with Smart Controls:

JG Speedfit offers simple and affordable underfloor heating solutions to create luxurious heat without having to compromise on interior design. The company offers a variety of underfloor heating solutions that are compatible with various floor types and projects, be it retro-fit or new build. All underfloor heating solutions offered by the company can be controlled by the JG Aura smart heating controls that offer the flexibility of managing heat from anywhere at anytime using the JG Aura app on smart phones or tablets.

All-round heating control

As well as controlling underfloor heating, JG Aura can be combined with existing or new radiators.  Creating a single solution capable of controlling different temperature times and settings throughout the property.
