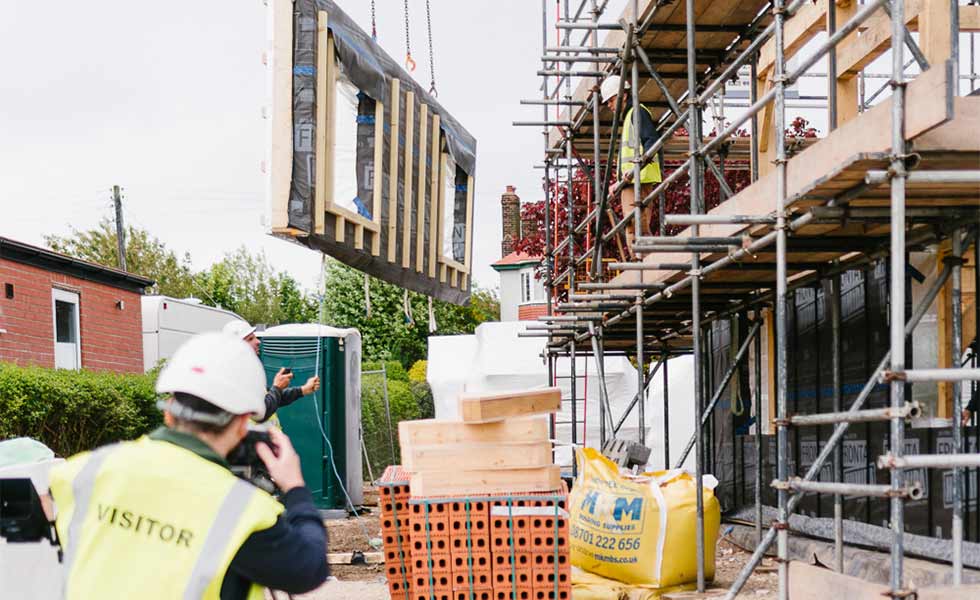

Oakwrights have carried out successful preliminary air pressure tests on the UK’s first Passive House oak framed home, which is being constructed for Self-Builder Dr Phil Garnett in Yorkshire.

Passive House (also known as Passivhaus) is the fastest growing energy performance standard in the world. Over the course of a year a Passive House typically uses up to 90% less heating and cooling energy compared to consumption in typical homes.

Oakwrights Certified Passive House Consultant David Bryan said: “We are often asked about eco-friendly new build designs which meet the planning requirements for energy efficiency and constructing to the Passive House standard can be the ideal solution.”

“The key to the success of this type of building is having structural oak frame internally with an airtight, insulated envelope surrounding this, to avoid all penetration of this skin to reduce thermal bridging and possible issues with airtightness as the oak dries out.”

The Oakwrights team found that the preliminary air pressure test result gained this week were 0.4ach @ 50Pa which is 33% better than that required for Passive House requirements and also below the design limits of the property which will mean that potentially even less energy will be required than the original calculations in PHPP (the Passive House Planning Package) suggested.

“Passivhaus Design principals require a building to have a minimum airtightness standard of 0.6ach @ 50Pa (air changes per hour at 50 pascals); that means that a maximum of 60% of the entire volume of air in the building can be replaced by means of leakage around windows etc. in one hour when the air pressure difference between inside and out is 50Pa. It is difficult to directly compare this to current Building Regulation standards as the units of measurement are different, however, this equates to slightly less than one tenth of the current requirement for new UK dwellings.”

As these tests were carried out without the final internal finishing in place, it is usual that this result will improve once the building is complete so the company is looking forward to the final approval blower door test to see how much better it can get.

Oakwrights frames can be tailored to be Barn Style, Contemporary or Post & Beam internally to suit all tastes with the common element being a suitably insulated envelope, such as our WrightWall Natural, which utilises JJI-Joists and Warmcel insulation amongst other components to provide wall and roof panels with minimum U-values of 0.15W/m2K and 0.12W/m2K respectively. In our climate these should be sufficient to provide a good starting point for a Passive House design.

As is the case of any Passive House, or indeed a home built on the principles thereof, careful and thoughtful design can achieve an elegant, efficient building which can buck the perceived understanding that Passive Houses tend to be bland, boxy structures.

Operating nationwide and abroad, Oakwrights are a multi-award winning company specialising in the design and construction of all styles of oak framed houses and outbuildings.

Whether you’re looking for a traditional or contemporary, cottage or manor house, Oakwrights Architectural Designers will put their extensive skills and knowledge at your disposal and produce designs to inspire you. From there the Frame Designers and framing team will turn your designs into a structural reality and once complete, an Oakwrights Encapsulation System will wrap your oak frame using the most up-to-date technology, giving you the healthiest of homes.

With years of experience of building oak framed homes, Oakwrights have developed a simple approach to the overall build process, designed to allow you, the self-builder, more flexibility. They call this ‘Building the Wright Way’.

Their unsurpassed reputation has been built on excellence of design, quality of product and professionalism of service – from the first meeting with Oakwrights you’ll instinctively know you’ve made the ‘Wright’ decision.

Proud to exhibit at the Homebuilding & Renovating Shows. Operating nationwide and abroad, Oakwrights are a multi-award winning company specialising in the design and construction of all styles of oak framed houses and outbuildings. Whether you’re looking for a traditional or contemporary, cottage or manor house, Oakwrights Architectural Designers will put their extensive skills and knowledge at your disposal and produce designs to inspire you. From there the Frame Designers and framing team will turn your designs into a structural reality and once complete, an Oakwrights Encapsulation System will wrap your oak frame using the most up-to-date technology, giving you the healthiest of homes.
